BLV1 Series – Ball Valves
| Access-products | |
|---|---|
| Application | , |
| Brand | |
| Industry | , , |
Ball valves offer great economy and durability for a wide range of applications that do not require completely hygienic, cleanable-in-place (CIP) service. They are easy to install and maintain.
Description

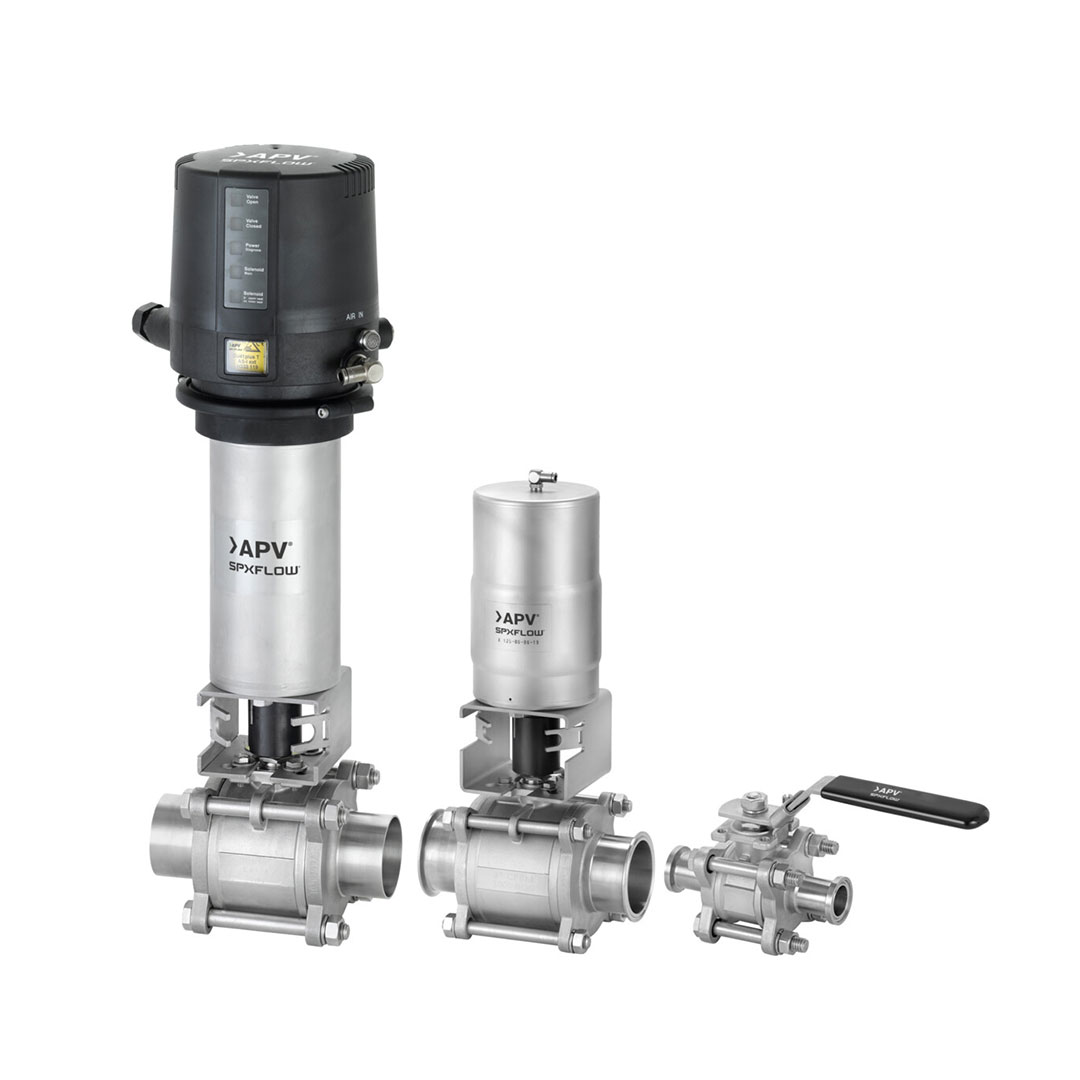

Sanitary Stainless Steel Ball Valve
Design and Construction Features
- All stainless-steel body and ball—forged for durability
- Three-piece design with floating seals
- Cavity-filled body prevents residue accumulation
- Full port opening ensures unrestricted flow
- Standard ISO mounting pad enables easy actuator retrofit
Material and Compliance
- FDA-approved construction materials
- Reinforced PTFE seats ensure reliable sealing
Performance Specifications
- Rated for high temperature and pressure service conditions
- Maintenance-free pneumatic actuator options:
- Normally Closed
- Normally Open
- Double Acting
Operational and System Integration Benefits
- Lockable manual handle for enhanced security
- Compatible control units align with other valve types for a unified interface and shared spare parts
Actuator Warranty & Reliability
The actuator supplied with this valve is covered by a 5-year actuator warranty, or up to 1 million actuations, whichever comes first. Built with fully welded, sealed, maintenance-free construction, it eliminates internal servicing and reduces wear components to deliver long-term durability in demanding hygienic processing environments.
Key benefits include:
- Maintenance-free operation with no internal servicing
- Fewer spare parts and improved total cost of ownership
- uptime and production continuity
