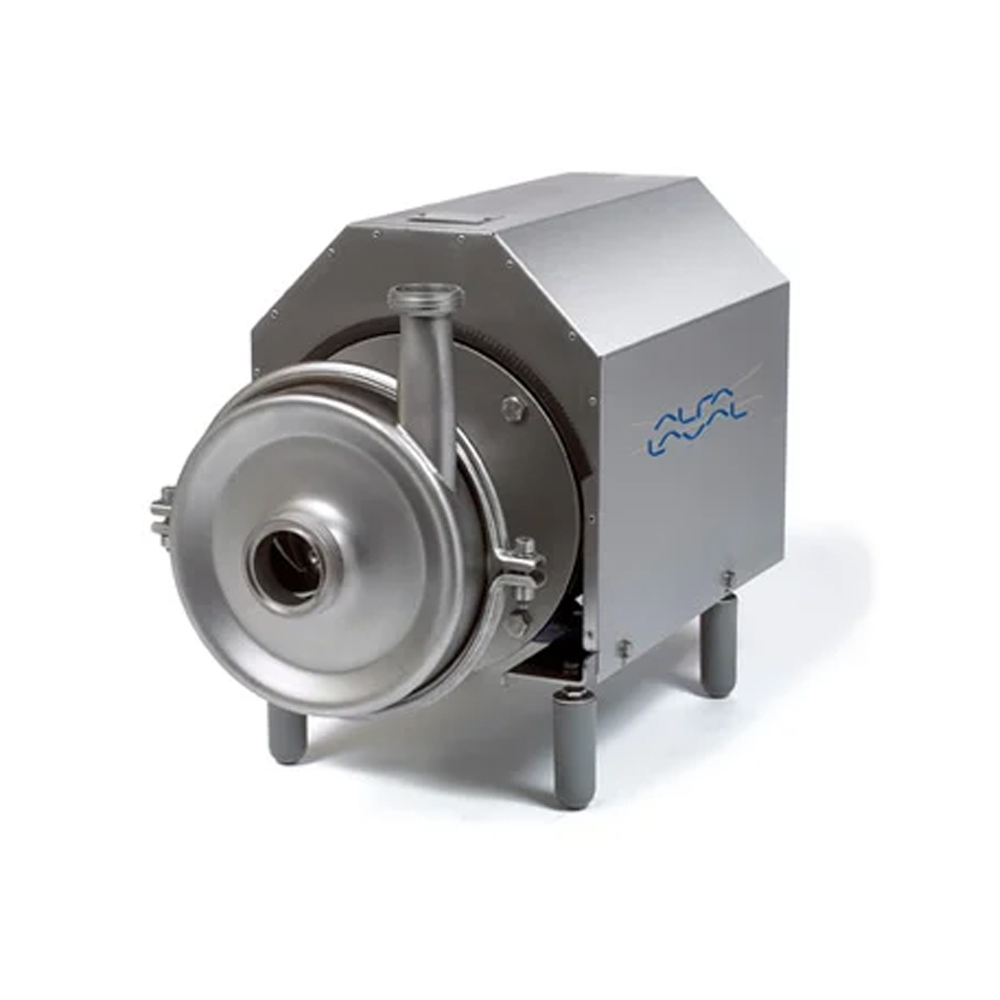

The Alfa Laval SolidC pump is a standardized centrifugal pump for the basic transport of process fluids in hygienic applications. Its hygienic design, cost-effective operation and quick, easy maintenance offer excellent value for money.
Solid value for money – consistent performance, excellent hygiene and maximum cleanability
- Low process contamination risk – compliance with global hygienic design standards and verified cleanability
- More uptime due to quick and easy maintenance
- Continuous operation – no unplanned production stops due to robust mechanical design and front-loading shaft seal
- Peace of mind thanks to an extended three-year warranty
The SolidC is a reliable, cost-effective centrifugal pump that delivers consistent performance in hygienic applications.
Its semi-open impeller, external front-loading shaft seal, single-piece stainless steel housing, and long-life compression couplings contribute to solid performance, high product quality, and ease of maintenance.
This standard centrifugal pump is available in four models capable of handling flow rates up to 80 m3/h, pressures up to 8 bar at 50 Hz, and inlet pressures up to 4 bar.
How does the Solid C centrifugal pump work
Operating principle
The pump impeller of the Alfa Laval SolidC centrifugal pump is mounted on a shaft, driven by an electric motor. The shaft turns and transfers the rotational energy to the fluid passing through the pump. The centrifugal force of the fluid increases the fluid’s kinetic energy and velocity as well as the pressure in the pump. The centrifugal force then directs the fluid towards the pump outlet.
Pump range
Four different SolidC models handle flow rates up to 80 m3/h, pressures up to 8 bar at 50 Hz, and inlet pressures up to 4 bar.
Unique impeller design
The semi-open impeller with a unique multi-vane design ensures particularly low NPSHr (Net Positive Suction Head required), which helps prevent cavitation and minimizes the risk of mechanical damage. Impeller balancing holes enhance circulation around the shaft seal and reduce axial forces. This maximizes cleanability and minimizes wear on the shaft seal and motor bearings.
One-piece pump housing
The pump housing is constructed from a sturdy, single piece of stainless steel. There is no need to disconnect or remove the pump casing from the process line during inspection or maintenance. This feature, combined with a front-loading seal, minimizes downtime and saves time and money.
Optimized shaft seal
One shaft seal fits all models of SolidC and LKH pumps. This standardized approach reflects a forward-thinking pump technology that simplifies maintenance and reduces costs.
Compression coupling
The compression coupling attaches the stub shaft to the motor shaft with precision alignment. Setup is simple, operations secure and noise, vibration minimized, and the service life of the shaft seal and motor prolonged.
