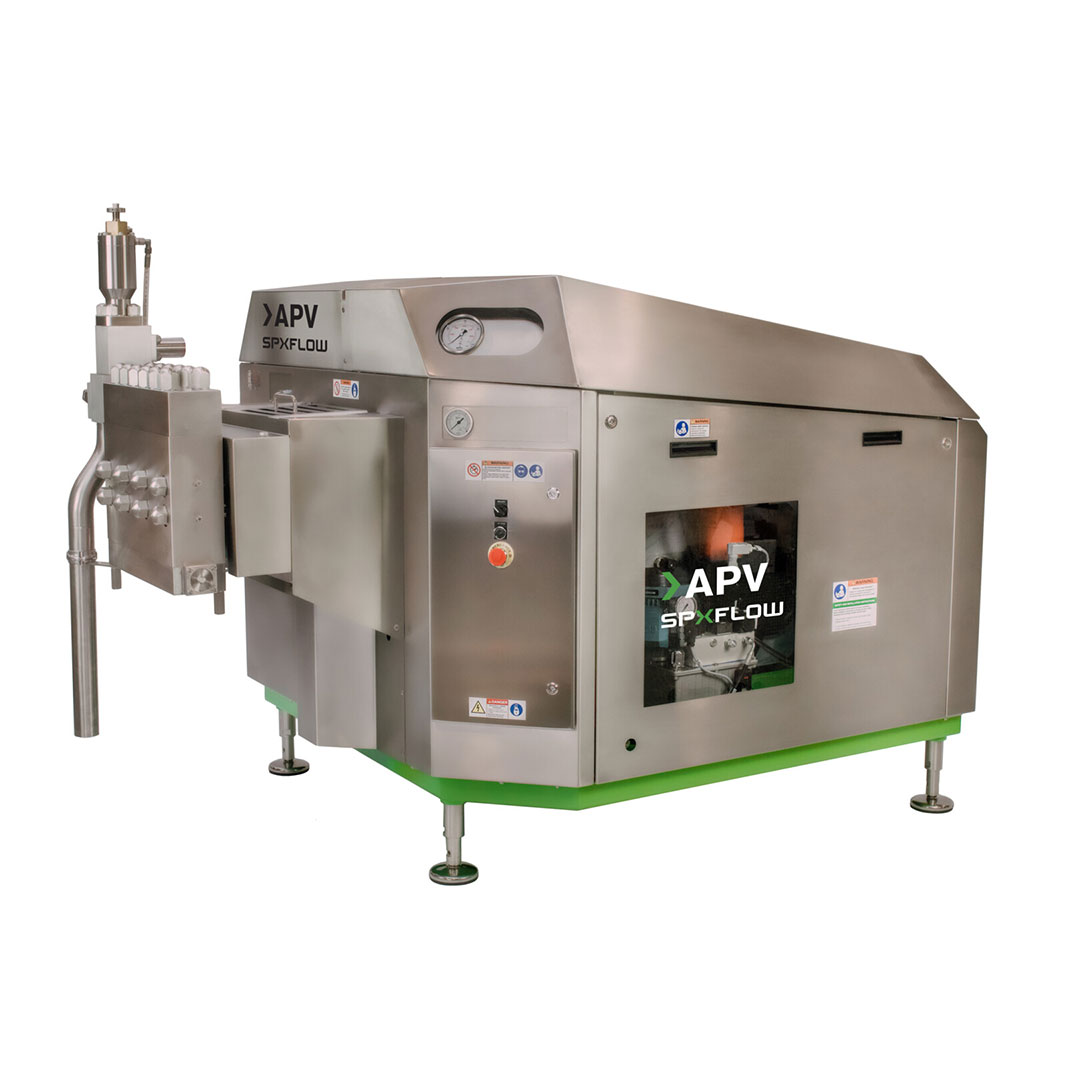

Rannie 77T and Gaulin 77T Series – High Pressure Homogenizers
| Access-products | |
|---|---|
| Application | , , , |
| Brand | |
| Industry | , , |
The more modular and flexible design of the APV 77T makes it suitable for a wide range of applications in dairy, food, beverage, industrial and pharmaceutical industries.
Description
Operational Benefits
Optimal Operator Interface
- All controls placed logically together
- Gauges and other visual indicators are visible from the operating position
- Direct view of key power end check points through a window
- Modular electrical controls
High Reliability
- Internal gear transmission
- Enhanced oil treatment and cooling system with oil filter as standard
- Low center of gravity for reduced vibration
Maintenance-Friendly Design
- Easy access for servicing, reduced maintenance time
- Low machine height for ergonomic access
- Visual service indicators
- Improved cooling and oil treatment indicators
- Access to electric control box from the outside
- Built-in belt tensioner
Noise Reduction
Balanced low speed crankshaft for reduced noise
Core Features
The Liquid End Includes
- Pressure gauges
- Pressure relief valve
- Weld-stub product connections
- 3-A sanitary design in stainless steel or duplex materials
- Ball or poppet pump valves
- Hard metal coated long life plungers
- Hydraulic valve actuator for smooth and stable control
- Single or two stage homogenizing valve, to meet your application requirements
The Power End Includes
- Internal gear and self-adjusting belt tightener
- Oil cooling system with external plate heat exchanger and temperature transmitter
- Oil filter including alarm
Other Standard Features
- wired to stainless steel control cabinet
- Emergency stop
- Stainless steel sanitary cladding
- Inspection window for key operating indicators
- Set of tools
- Set of packings
Key Applications
Field of Application
- Dairy
- Food
- Beverage
- Industrial
- Pharmaceutica
