GBIT Glass Bottle Impact Tester for Accurate Resistance Testing
| Application | |
|---|---|
| Brand | |
| Industry | |
| Machinery Type |
Lab industrial solution |
| Access-products | , , |
A precision instrument designed to accurately measure the impact resistance of glass bottles and jars, ensuring their quality and durability through consistent, controlled testing. It features user-friendly operation and is adaptable to various bottle sizes.
GBIT Glass Bottle Impact Tester: Accurate Resistance Testing

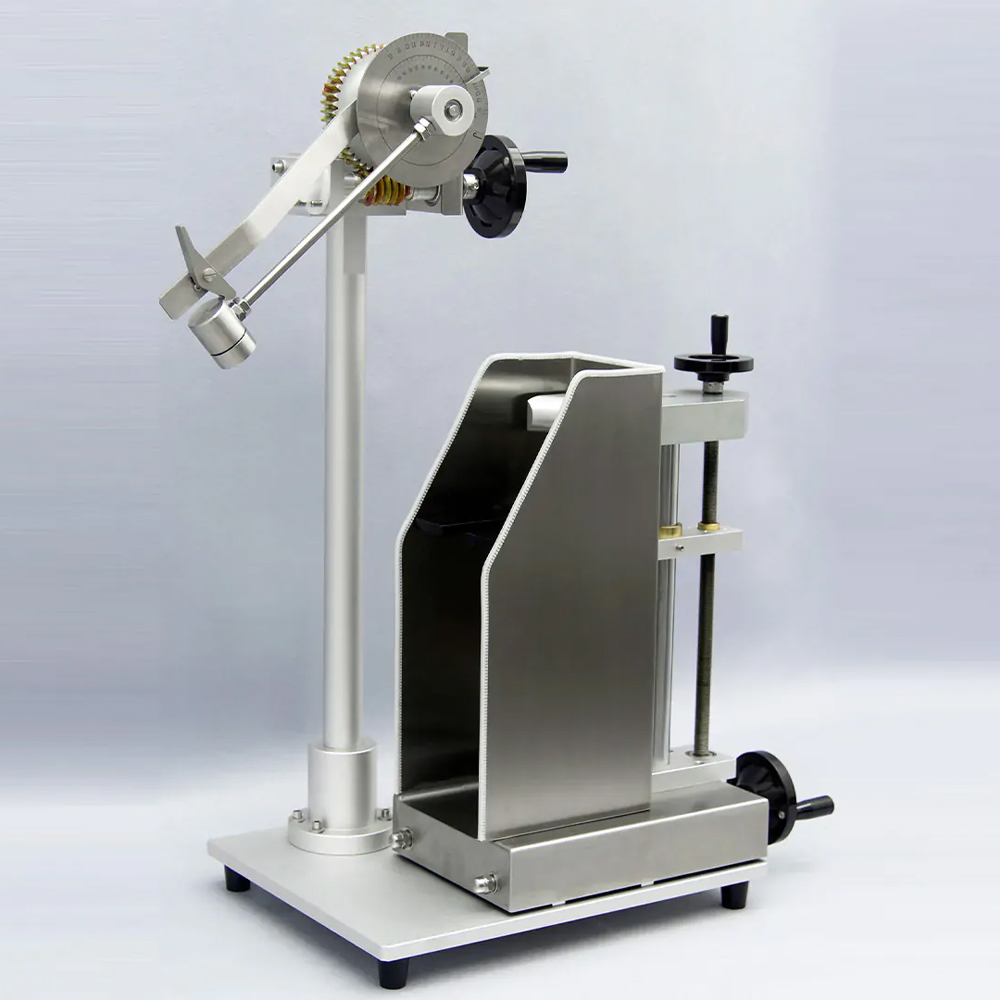

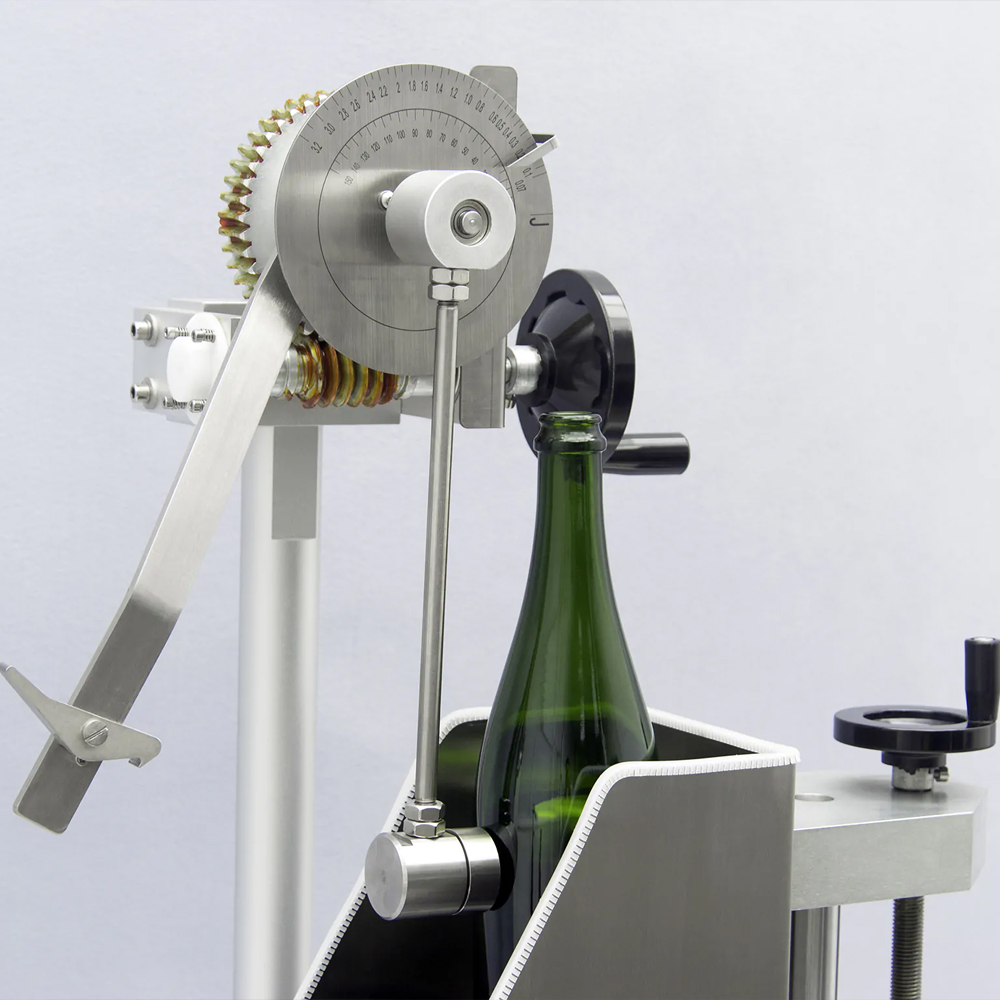

The GBIT Glass Bottle Impact Tester is a crucial tool for assessing the impact resistance of glass bottles and jars. Using a pendulum strike mechanism, it delivers consistent, forceful impacts to ensure reliable testing results.
High Precision Measurement
Based on the principles of energy conservation, this tester provides accurate measurements of impact resistance, ensuring the quality and durability of glass containers.
User-Friendly Operation
The device features a flexible sample clamp and a stainless steel safety shield, making it easy and safe to use.
Versatile Applications
Suitable for a variety of glass bottle sizes, it meets diverse testing needs in the packaging industry.
Key Features
- Flexible Sample Clamp: The clamp can move both vertically and horizontally, allowing for easy adjustment of the sample’s position.
- Energy Conservation Principle: Designed according to the law of conservation of energy, ensuring high accuracy and reliability in testing.

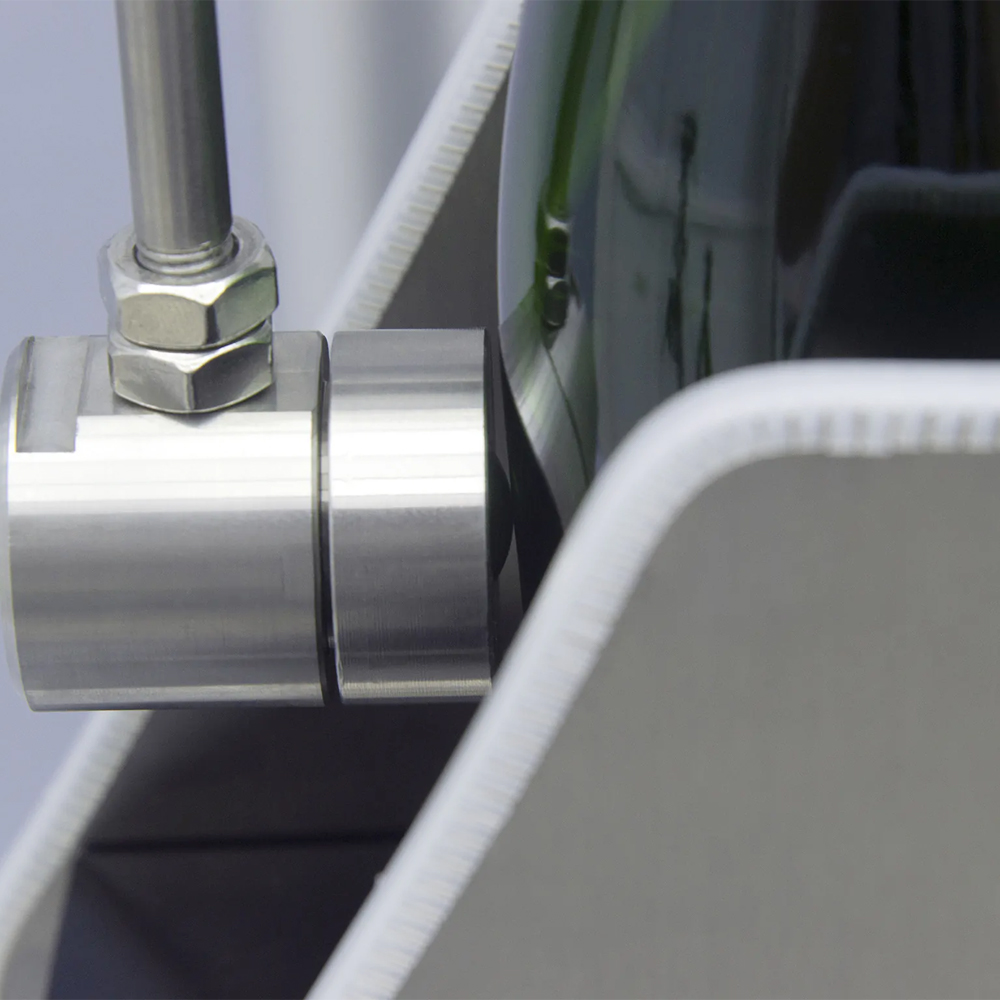

- Stable Pendulum: The pendulum rotates and releases freely, providing consistent impacts.
- Safety Features: Includes a stainless steel safety shield for protection during testing.
- Ease of Use: Designed for straightforward operation.
Operating Principle

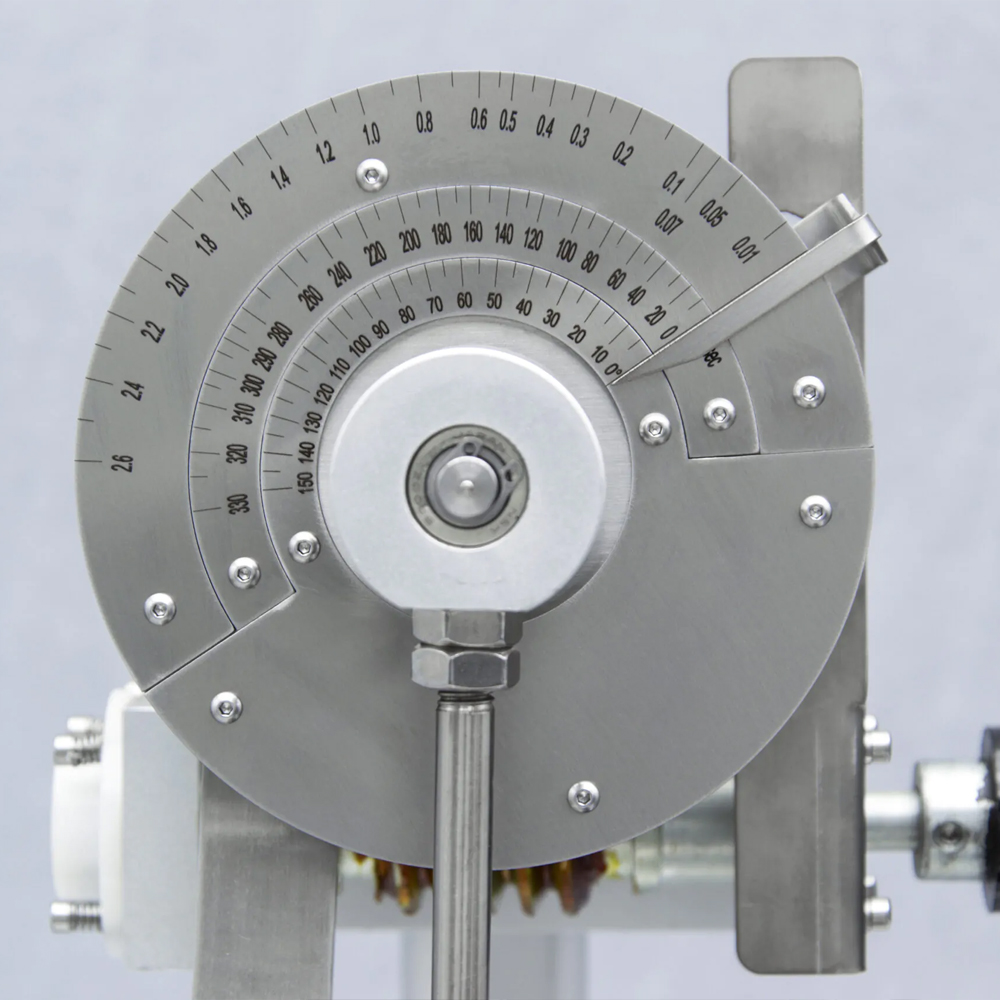

The tester operates on the principle of energy conservation. The energy applied to the bottle during impact is determined by the pendulum’s potential energy at its starting position. By setting the pendulum at a specific angle, its potential energy corresponds to a particular impact energy value. Upon release, the impact on the bottle is measured to determine if the bottle is damaged.
Technical Specifications
- Sample Diameter Range: Ф20 – 130 mm (clamps for other sizes available)
- Maximum Impact Energy: 2J
- Resolution:
- 0.1J for impact energy greater than 0.6J
- 0.05J for impact energy less than 0.6J
- Energy Loss: ≤1.5%FS
- Dimensions: 530 x 350 x 700 mm (21.3 x 13.8 x 27.6 in)
FAQ for GBIT Glass Bottle Impact Tester
What is the purpose of the GBIT Glass Bottle Impact Tester?
The GBIT Glass Bottle Impact Tester is designed to accurately measure the impact resistance of glass bottles and jars. It ensures the quality and durability of these containers through controlled and consistent testing.
How does the GBIT Glass Bottle Impact Tester work?
This tester operates based on the principle of energy conservation. It uses a pendulum strike mechanism to deliver precise impacts to the glass containers, measuring the energy applied during testing to assess if the bottle is damaged.
What are the key features of the GBIT Glass Bottle Impact Tester?
Key features include a flexible sample clamp that can adjust both vertically and horizontally, a stable pendulum for consistent impacts, a stainless steel safety shield for protection, and an easy-to-use design suitable for various bottle sizes.
What is the sample diameter range for the GBIT Glass Bottle Impact Tester?
The GBIT can accommodate sample diameters ranging from Ф20 to 130 mm, with clamps available for other sizes as needed.
What is the maximum impact energy that the GBIT can test?
The maximum impact energy that the GBIT Glass Bottle Impact Tester can deliver is 2J, with varying resolution depending on the impact energy level.
Is the GBIT Glass Bottle Impact Tester safe to use?
Yes, the GBIT is designed with safety in mind, featuring a stainless steel safety shield that protects users during the testing process, ensuring a safe testing environment.
