A tool designed for fast and accurate measurement of curl diameters in aluminum can ends, featuring integrated data management for enhanced accuracy. Ideal for quality control in can manufacturing.

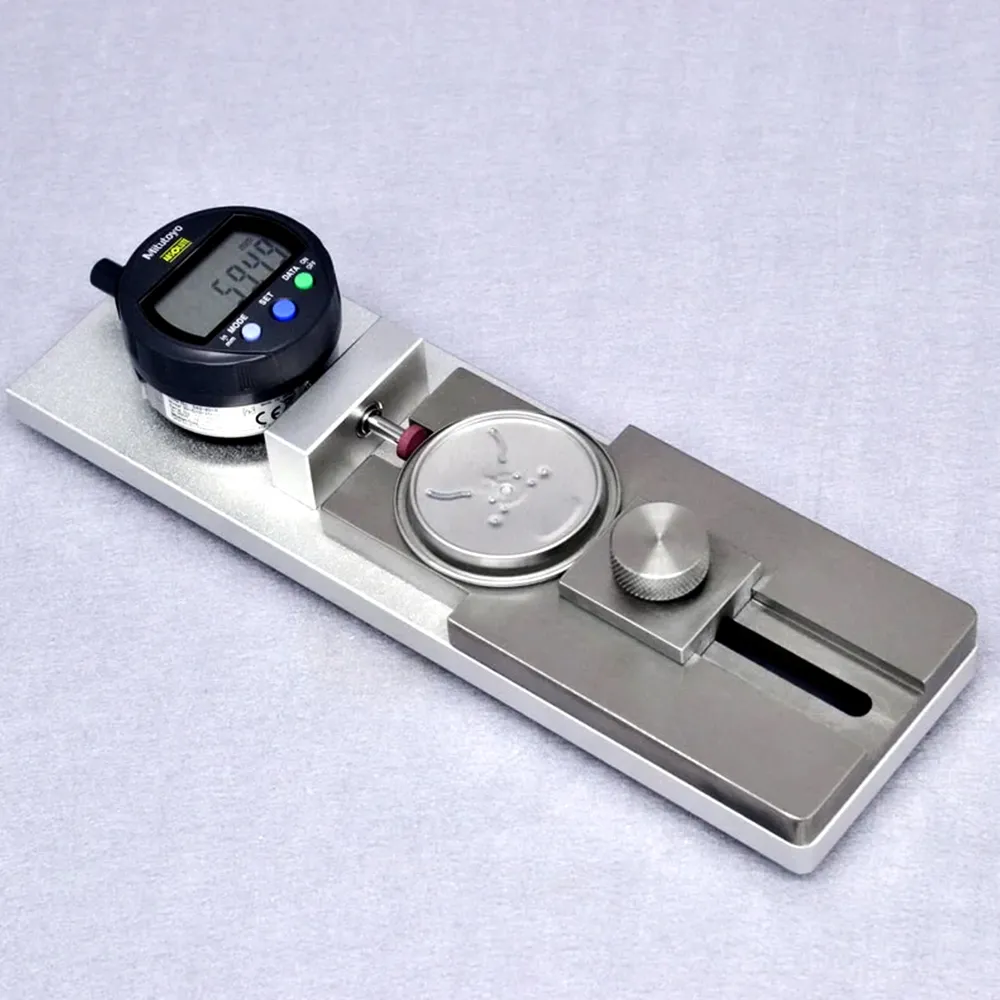

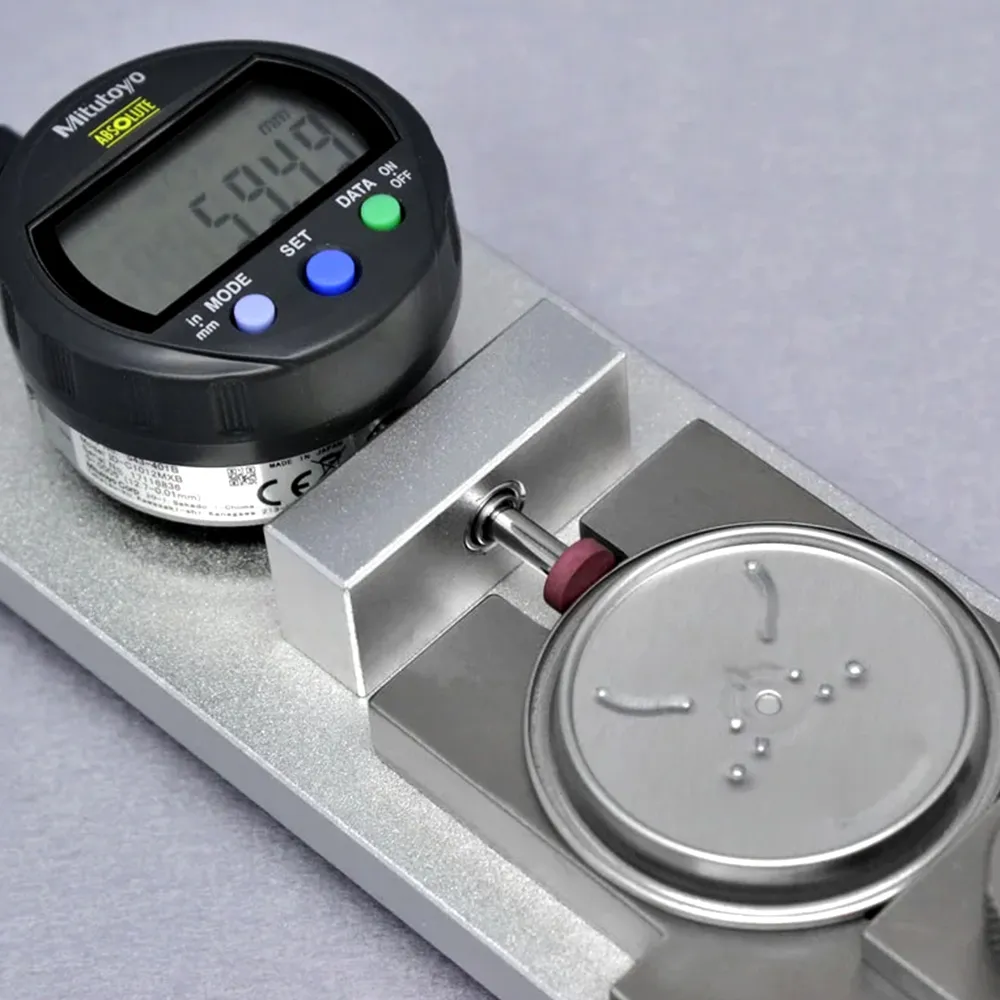

ECDG-1 End Curl Diameter Gauge
Ensure precise and efficient curl diameter measurements for aluminum can ends with the ECDG-1 End Curl Diameter Gauge—an essential tool for quality control in can manufacturing.
Fast and Accurate Measurements
The ECDG-1 provides quick and accurate measurements of curl diameters. Each gauge includes calibration blocks tailored to specific end types, ensuring consistent and reliable results.
Durable and User-Friendly Design
Built for durability, the ECDG-1 is designed for easy operation. Its robust construction ensures long-lasting performance, even in demanding environments.
Integrated Data Management
To minimize manual recording errors, the gauge can be connected to an SPC system using the DTB-1 Data Transporting Box and cable. This integration streamlines data transfer, enhancing the accuracy of measurements.
Technical Specifications:
- Measuring Range: Φ50-Φ110 mm
- Resolution: 0.01 mm
- Accuracy: ±0.01 mm
- Sample End Type: 113# – 401# (larger sizes available by order)
- Overall Size: 265 x 80 x 195 mm (10.4 x 3.1 x 7.7 in)
- Net Weight: 2 kg (4.4 lbs.)
FAQ for ECDG-1 End Curl Diameter Gauge
What is the purpose of the ECDG-1 End Curl Diameter Gauge?
The ECDG-1 End Curl Diameter Gauge is specifically designed for fast and accurate measurement of curl diameters in aluminum can ends. It is an essential tool for quality control in can manufacturing, ensuring precise measurements for optimal product quality.
What are the technical specifications of the ECDG-1?
The ECDG-1 has a measuring range of Φ50-Φ110 mm, with a resolution of 0.01 mm and an accuracy of ±0.01 mm. It is compatible with sample end types ranging from 113# to 401#, and larger sizes are available upon request. The overall dimensions of the gauge are 265 x 80 x 195 mm, and it weighs 2 kg.
How does the integrated data management feature work?
The ECDG-1 can be connected to an SPC system using the DTB-1 Data Transporting Box and cable. This integration allows for streamlined data transfer, minimizing manual recording errors and enhancing the accuracy of your measurements.
Is the ECDG-1 easy to use?
Yes, the ECDG-1 is designed with user-friendliness in mind. Its durable construction and intuitive operation make it suitable for use in demanding environments, ensuring long-lasting performance and ease of handling.
Can the ECDG-1 accommodate different end types?
Yes, the ECDG-1 includes calibration blocks tailored to specific end types, allowing for consistent and reliable results across different can end formats. This versatility makes it an ideal choice for various manufacturing needs.
What is the weight of the ECDG-1 End Curl Diameter Gauge?
The ECDG-1 has a net weight of 2 kg (4.4 lbs.), making it lightweight and portable for easy handling and operation in quality control processes.
