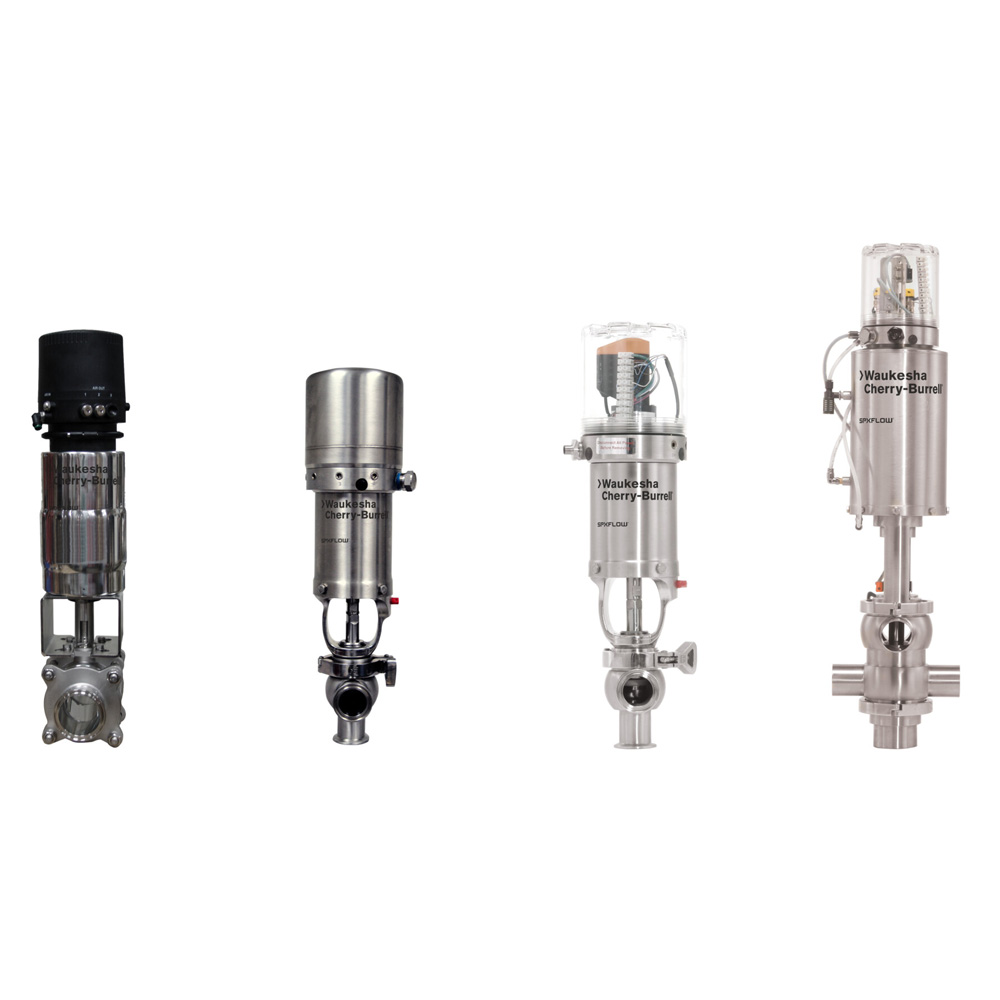

Control Units for Valves – WCB

Control units for valves provide an interface between the PLC control system and the pneumatic process valve in a pipe work.

Description

SPX FLOW Control Tops Overview

SPX FLOW offers a wide variety of control tops to best fit the type of valves you are utilizing.

Visibility – Transparent control top keeps all electrical components visible.
User-Friendly – Designed with the user in mind, making assembly and troubleshooting worry-free and easy.
Common Parts – Utilizes widely recognized electrical components for easy access to off-the-shelf replacements.
Standardization – Same control top used across various WCB valve lines for a unified look and interface.
NEMA 4X (IP56) washdown rating.
Stainless steel cover option for severe duty environments.

Reliability and Long Service Life – Robust clamp connection, reinforced stainless steel air coupling threads, and watertight seals.
Reduced Costs – Few parts and simple design.
Ease of Operation – Manual override solenoids, adjustment screw for air flow, and simple sensor adjustments.
Clarity – Clear valve position indication via 5 LEDs in a conveniently located panel.
Standardization – Common control top across SPX FLOW valve lines for consistent interface.
NEMA 6 (IP67) washdown rating.

Ease of Operation – Contact-free position sensor with intuitive push buttons or Autotune feature for fast setup.
Clarity – Ultra-bright 360° LED position indication with customizable red, yellow, and green colors.
Service – Built-in microcontroller tracks cycles and alerts for preventive maintenance.
Standardization – Unified control top across SPX FLOW valve lines.
Up to IP69K washdown rating available (IP65/67 standard).
Supplied by industry-leading Burkert Fluid Controls.
