Bilge Pump Switches
| Application | |
|---|---|
| Brand | |
| Industry | , |
| Access-products |

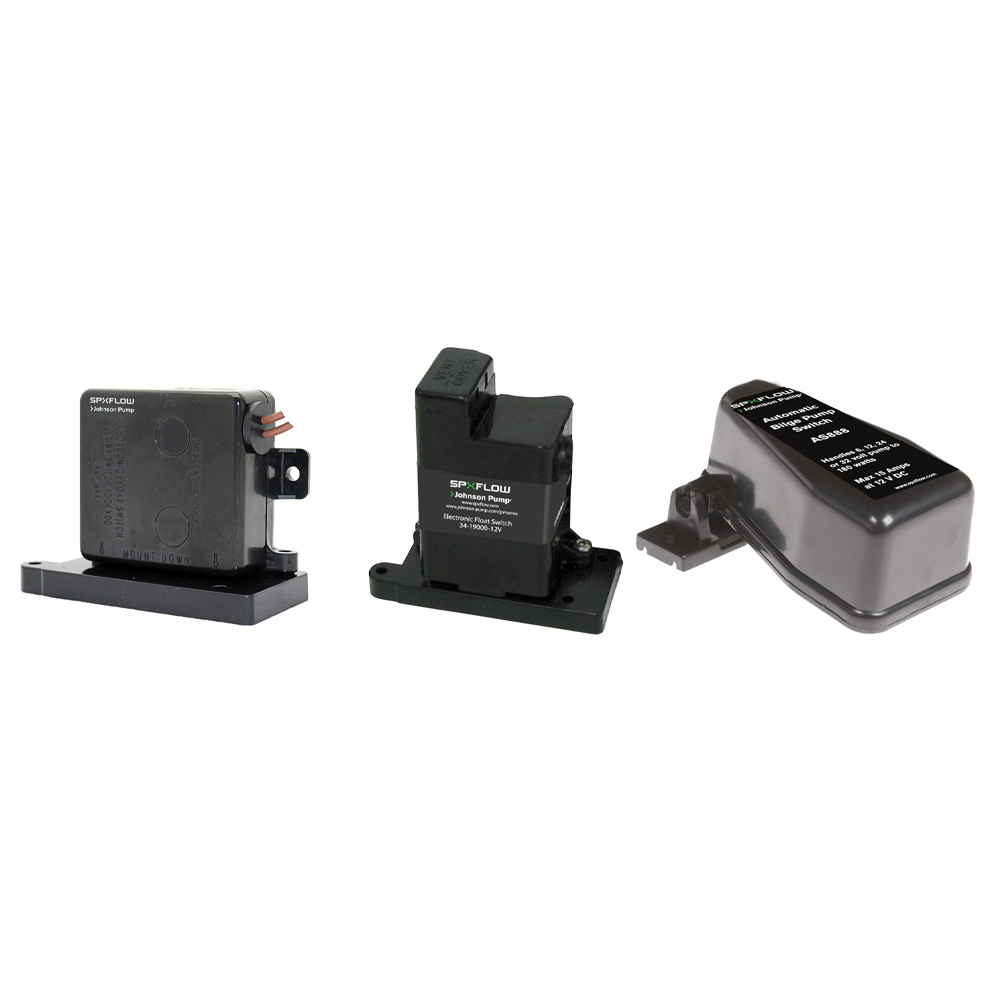

Equip your bilge pump with a switch for the automatic operation of your pump. A switch will automatically activate the bilge pump when the water level rises in the bilge and deactivate the pump as the water level is lowered. Switches available are the top-of-the-line digital Ultima Switch, an Electro-Magnetic Float Switch and a traditional Float Switch; all Mercury-free.
Ultima Switch – Electronic Automatic Switch
The solid-state electronic automatic switch Ultima Switch uses the patented Mirus field effect detector cells producing micro-electrical fields that detect disruptions caused by water and fluids. Detector cells are totally sealed and are never in contact with the water, will not corrode and are not affected by oil or foreign debris.
- Limited 3 Year Warranty
- No moving parts, totally sealed solid state electronics and field detectors
- Environmentally sensitive; no mercury
- No exposed sensors eliminate corrosion possibilities
- Activates at a 50 mm (2″) fluid level and deactivates at a 20 mm (¾”) fluid level
- A three second delay prevents false starts from water sloshing in the bilge
- Ultima Switch is rated to handle pumps up to 20A at 12V or 10A at 24V.
Electro-Magnetic Float Switch
Compact mechanical switch offers a combination of reliable solid state electronics and a sealed float switch.
- Limited 3 Year Warranty
- For 12V or 24V
- False start prevention
- No mercury
- High impact plastic and encapsulated electronics adds up to dependability
- Activates pump at 2″ water level, deactivates pump at ¾” water level
- The switch is designed to attach to the SPX FLOW Johnson Pump Cartridge bilge pumps. When attaching to other SPX FLOW Johnson Pump bilge pumps, use the adapter provided.
