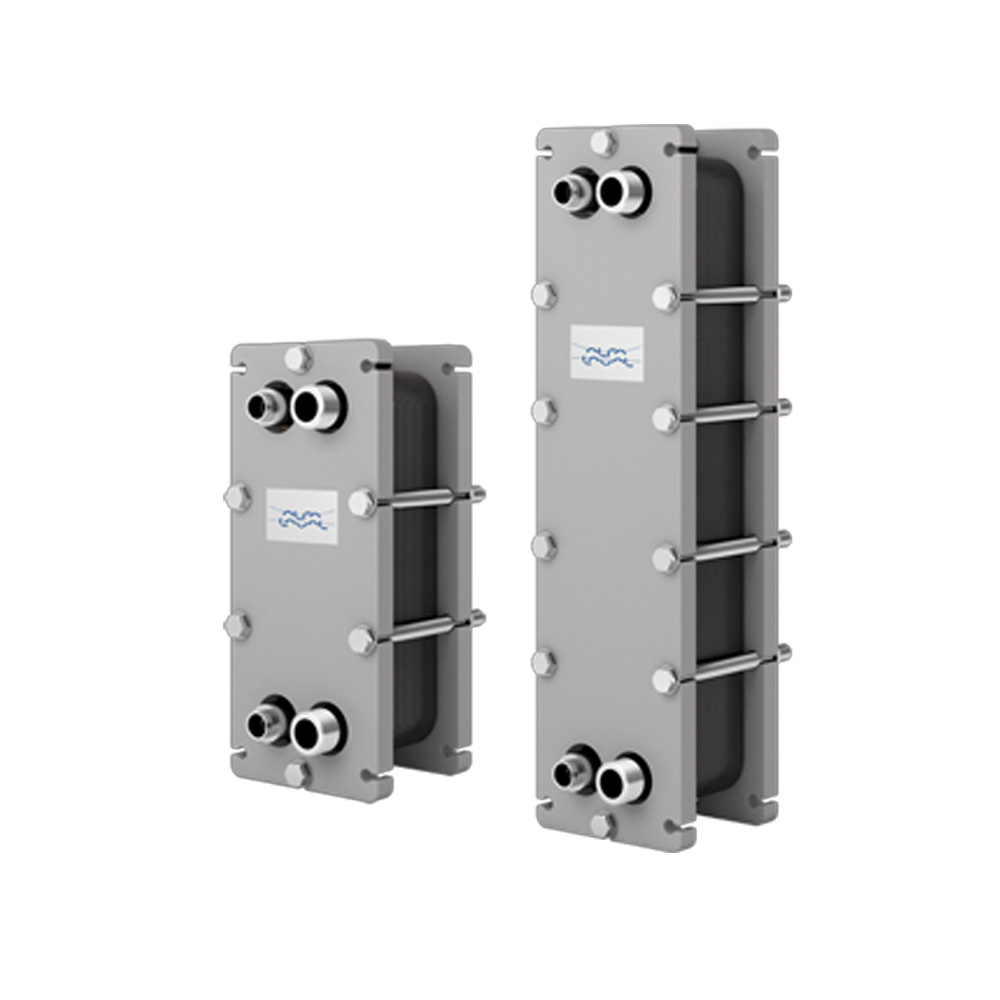

AXP stands for “extreme pressure,” and that’s exactly what this line of AlfaNova heat exchangers are designed to handle. Specifically engineered for subcritical and transcritical applications with CO2, the 100% stainless steel design also enables possibilities for other high-pressure duties with high hygiene demands or aggressive media. AlfaNova is therefore suited to CO2/ammonia cascade systems or compressor cooling.
Sustainable Heat Transfer
- Highly resistant to corrosion and extreme pressures
- Ensures a low refrigerant volume for ammonia systems where a low charge is desirable
- Can reliably support media temperatures ranging from -196°C (-320.8°F) to 550°C (1022°F)
- Able to withstand extremely high operating pressures thanks to external frames in carbon steel
- Certified to handle pressures up to 110 bar (PED approval) and 1595 psi (UL approval)
The AlfaNova AXP line has a capacity range of 10-150 kw, with PED-approval for maximum pressures of 110 bar at 150°C and UL-approval for 1595 psi at 302°F. The high-pressure design, combined with the benefits of Alfa Laval’s all-stainless-steel AlfaFusion bonding process, enable possibilities within a full range of subcritical and transcritical CO2 applications. These include heat recovery duties, gas cooling, condensing, sub-cooling and suction gas heating, and more.
