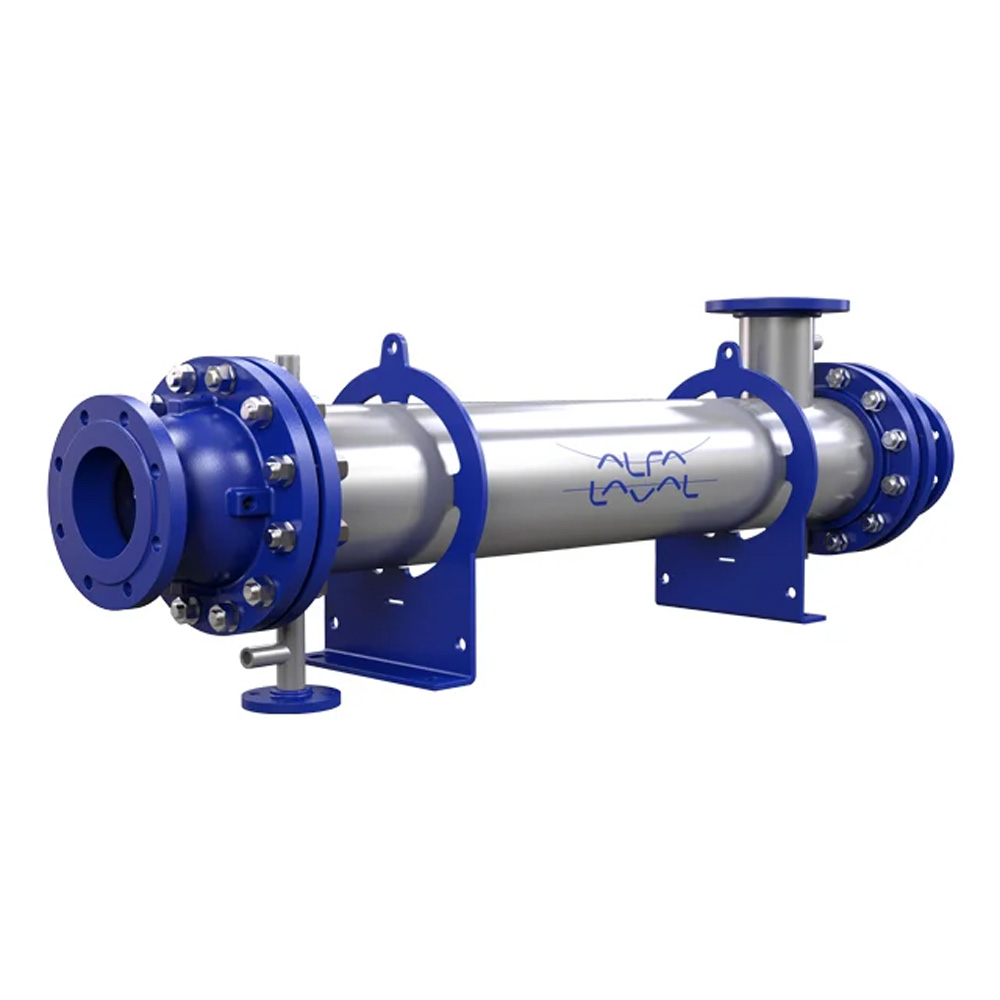

Aalborg MD - Image 1
Click to enlarge
Alfa Laval

Aalborg MD

Application

Brand

Industry

,

Access-products

The Aalborg MD-T is a shell-and-tube heat exchanger for heating seawater, ideal for tank cleaning. It handles a seawater flow of 180–380 m3/h using steam as the heating medium, with design conditions of 16 bar(g) and 204°C. The Aalborg MD-T is approved by all major marine classification societies and is CE/PED approved.

Description

ompact heat exchanger for seawater heating

  • Efficiently heat seawater for use in marine applications like tank cleaning

The Aalborg MD-T is primarily used to heat seawater for use in tank cleaning on marine vessels.

Technical specifications

Type

  • Steam heater

Application

  • Heating of seawater for tank cleaning

Capacity

  • 180–380 m3/h

Materials

  • Cu/Ni 70/30 alloy (or similar) for aggressive fluids in tubes
  • Other parts in carbon steel

Design conditions

  • Pressure: 16 bar(g)
  • Temperature: 204°C

Installation

  • Horizontal

Size

  • Ø150 x L600 mm to Ø500 x L3000 mm
 Equipment

  • Thermometers
  • Drain/vent valve
  • Control valve
  • Pressure gauge
  • Steam trap
  • Additional sensor wells

Approvals

  • Can be delivered with certificates from all major classification societies

Delivery

  • Within 8–12 weeks from order and approved drawing

Warranty

  • Operating warranty: 12 months
  • Maximum warranty: 18 months from time of delivery
