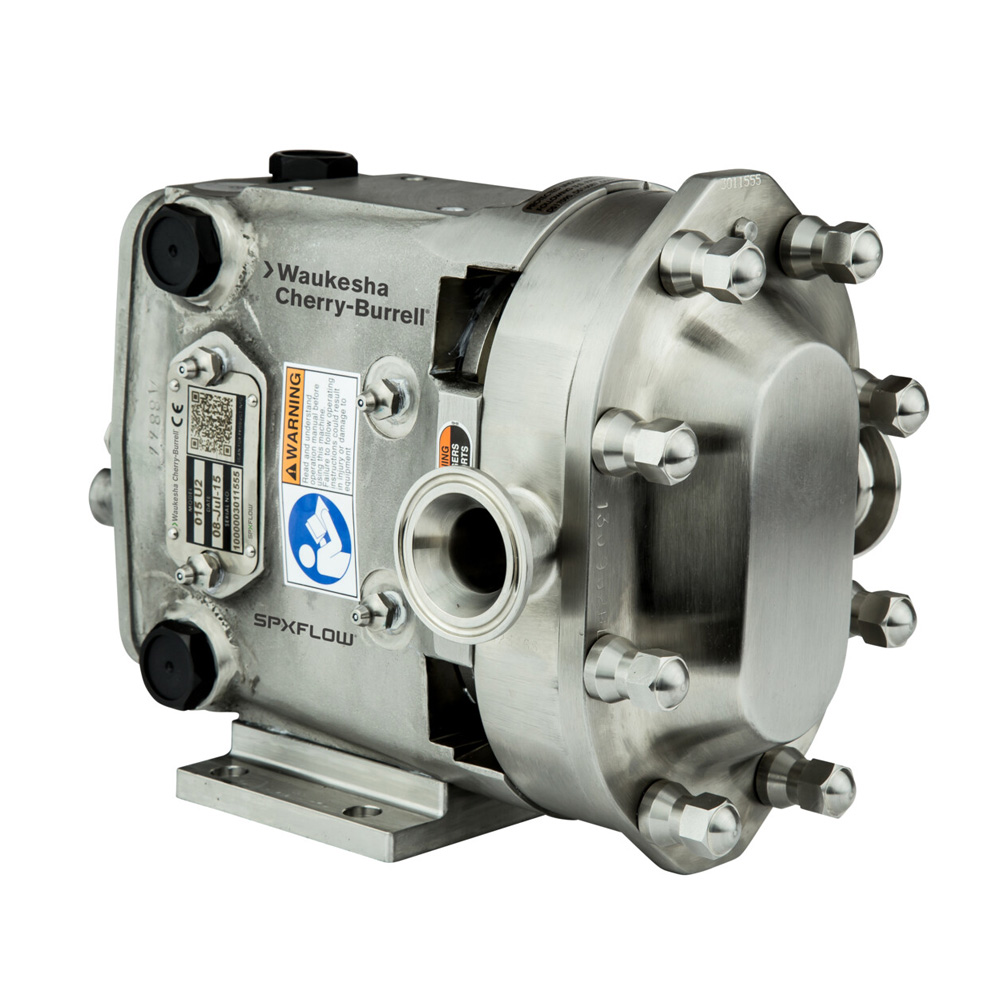

Universal 3 Series Pump – Features & Benefits

Key Features & Benefits

• CIP (Clean-In-Place) capability available:
  • Optional internal flat body profile for improved drainage
  • Free-draining with vertical ports
  • Optional rotor and body hub drilling for challenging CIP applications
• Cover is free-draining in both horizontal and vertical port positions
• Rotor/shaft connection sealed from the product zone
• Single mechanical seals standard
• Optional seal configurations:
  • Double mechanical seals
  • Triple lip seals for chemically aggressive or COP (Clean-Out-of-Place) sanitary applications
• Seal flush optional:
  • Interconnected seal areas for improved circulation and drainage
  • Steam-In-Place (SIP) capability also available
• Optional stainless steel bearing frame for models 006 to 370
• Aseptic design available as an option

Long-life Features

• Diffusion-hardened surfaces for rotor, body and cover available – ideal for abrasive or corrosive environments (3-A / FDA compliant)
• Pressure capability up to 500 psi (34.5 bar)
• Special rotor nut designed for extended service without loosening
• No bearings in the product zone
• Large diameter 17-4 PH shafts:
  • Greater strength and stiffness
  • Reduces vibration and extends seal life
• Heavy-duty bearing frame (stainless steel optional)
• Double tapered roller bearings
• Grease-lubricated bearings for consistent lubrication across all operating conditions
• Body retaining screws maintain mechanical seal contact during inspection
• Wave spring mechanically loads the seal for extended outer seal life
• O-ring on inner seal maintains sealing on clean surface as wear occurs
• Unique mechanical seal design:
  • 3-pin stationary seal
  • Specially designed shaft for rotary seal
