Valves for the suction side of the refrigerating circuit to protect the compressor from soiling by filtering dirt.
Description

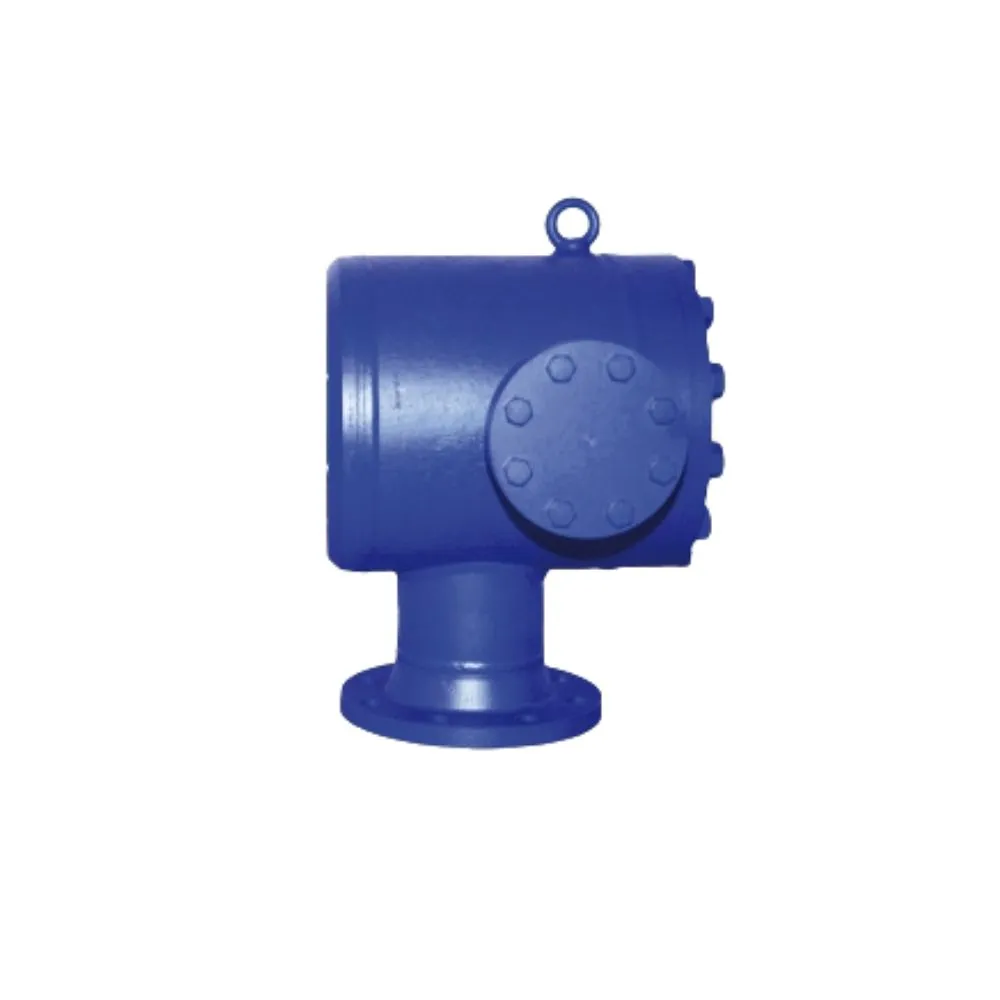

SD & SFR suction filters with or without integrated check valve function.
Suction filters support the closing of the check valve by using a spring. Types 572/551 also use an additional hot gas connection. suction filters are provided with bypass and test connections according to the customer’s requirements. They are fitted with a check valve and a replaceable strainer insert made of rustproof metal mesh. The check valve is attached to the bottom of the suction filter casing by means of hexagonal nuts and is maintenance-free. The strainer is self-centering and is held in the bottom of the casing. The cold gas refrigerant flows through the strainer from inside to outside. As soon as the flow of the medium slows down and comes to a standstill, the check valve closes. This prevents the screw-type compressor from reversing and thus no oil is lost. The flow of the refrigerant to the compressor can be stopped by the stop valve.
Technical Features
- Available in steel
- Selection of body material as per German DIN EN12284, AD2000 Series W
- Working media: glycol-based cold brine refrigerant EN 378 p. 1 and blends with refrigerator oil, neutral, gas and liquid media, glycol-based cold brine
- Mounting position: in any position
