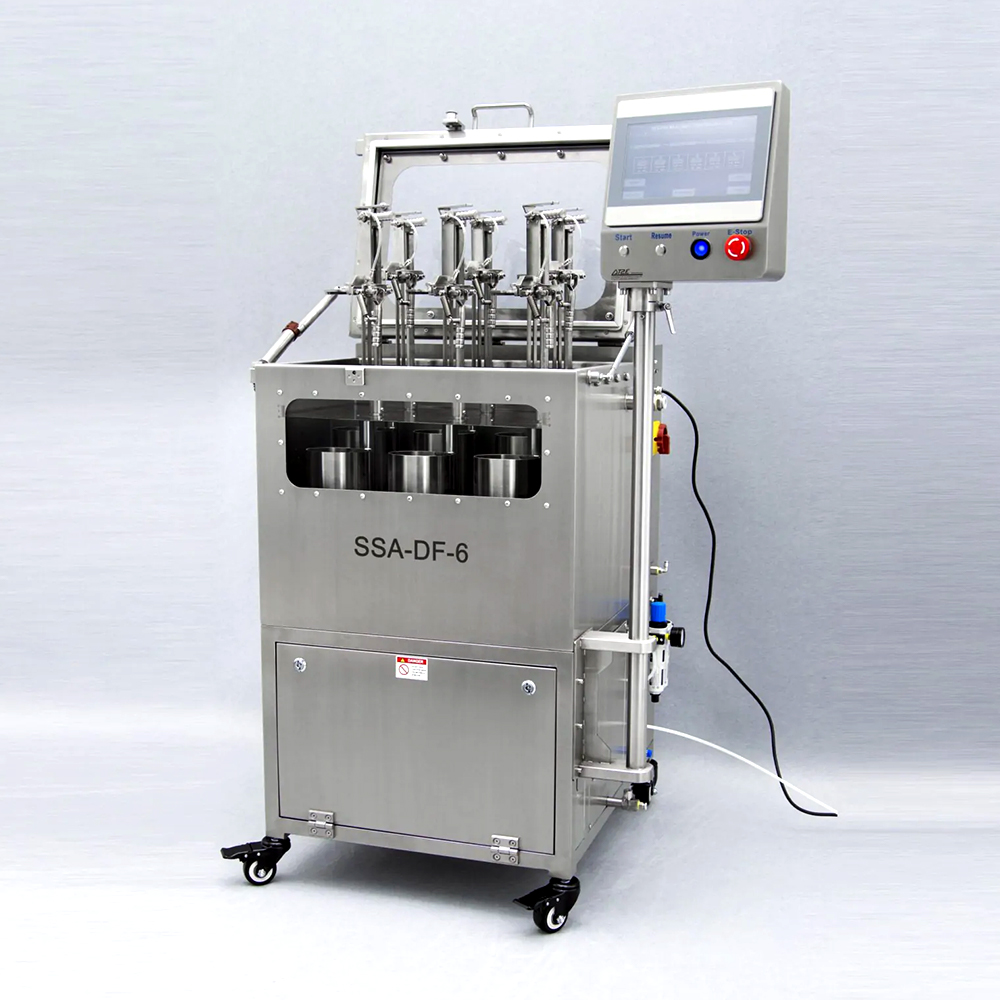

SSA-DF Secure Seal Analyzer (Multi Station Model)

Application

Brand

Industry

Machinery Type

Lab industrial solution
Access-products

,

,

,

,

A multi-station testing device designed to evaluate the sealing performance of bottles under pressurized conditions, with a cap-contact-free piercing method. It supports testing of multiple samples at once, featuring automated controls and explosion-proof safety measures

Description

The SSA-DF Secure Seal Analyzer is designed for testing the sealing performance of multiple bottles simultaneously, handling more than three samples at a time. It is ideal for verifying the integrity of bottle seals under pressurized conditions. With features that improve both efficiency and usability, it ensures accurate testing by avoiding any impact on the bottle cap during the sealing test process.

Key features include PLC control, a high-pressure servo proportional valve for precise pressurization, and a bottleneck piercing method that prevents damage to the cap and bottle finish. This design helps ensure that the actual sealing performance is accurately represented. The system includes explosion-proof bottle sleeves to reduce potential damage to the equipment if a sample bottle bursts during testing.

The SSA-DF system operates with one-button startup and automatic controls, supporting up to 12 pressure stages with adjustable target pressures, holding times, and pressurization rates. This flexibility makes it suitable for a variety of products.

Features:

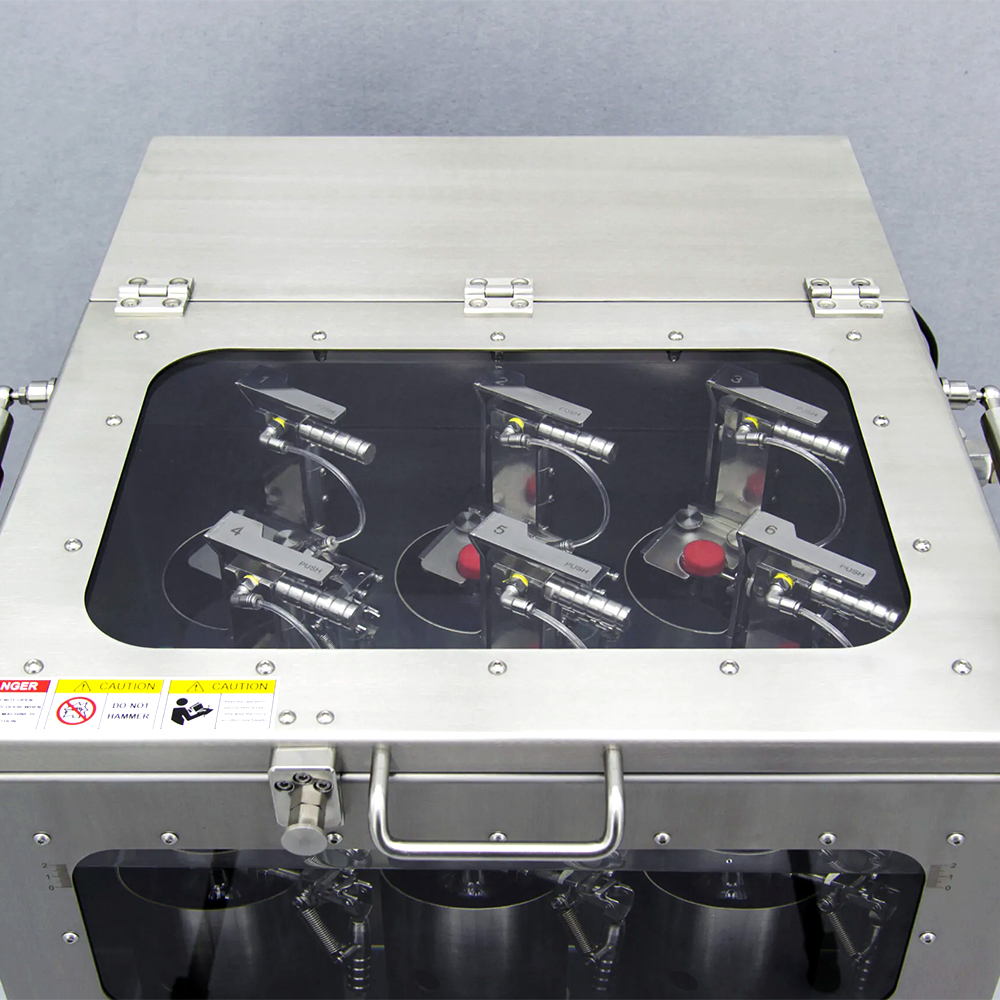

  • Multi-position design for higher testing efficiency

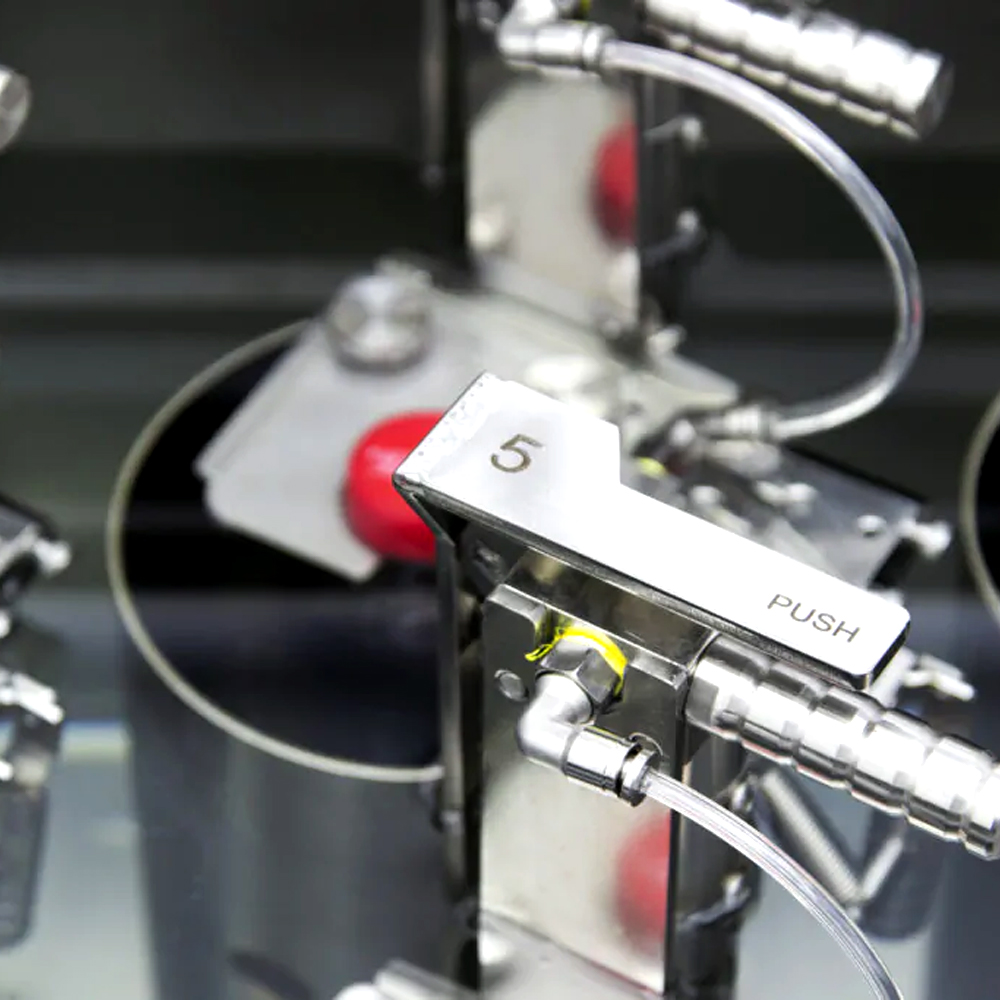

  • Cap-contact-free bottleneck piercing method to preserve the integrity of the cap and bottle finish
  • No vacuum required, reducing gas consumption during testing
  • Leak detection using pressure difference technology
  • Stainless steel secured device for explosion resistance
  • Up to 10 stages of pressure, adjustable pressurizing rates, and holding times
  • Memory for 30 product profiles and 10 operator profiles
  • Stores up to 1,000 test results
  • Administrative password protection for settings
  • Maximum pressure protection setting
  • RS232 output for software connection

Optional Components:

  • QUALIPRESS Software for enhanced control and data management
  • Automatic leak detection module
  • Cap test assembly
  • Inner pressure measuring module
  • Additional booster (increases line pressure up to four times)

For added flexibility, the system’s specifications and settings can be easily adjusted, making it ideal for a variety of bottle testing needs.

FAQ for SSA-DF Secure Seal Analyzer (Multi Station Model)

What is the purpose of the SSA-DF Secure Seal Analyzer?

The SSA-DF Secure Seal Analyzer is designed to evaluate the sealing performance of bottles under pressurized conditions. It allows for simultaneous testing of multiple samples, ensuring accurate verification of bottle seal integrity without damaging the caps.

How does the SSA-DF Secure Seal Analyzer work?

This analyzer utilizes a cap-contact-free bottleneck piercing method, which prevents any impact on the bottle cap during testing. It operates with automated controls, allowing for precise pressurization and testing of up to 12 pressure stages with adjustable settings for target pressures and holding times.

What safety features does the SSA-DF Secure Seal Analyzer include?

The SSA-DF features explosion-proof bottle sleeves to mitigate risks associated with sample bottle bursts during testing. Additionally, it is constructed from stainless steel for enhanced explosion resistance, ensuring safe operation even under high-pressure conditions.

Can I store test results and product profiles on the SSA-DF Secure Seal Analyzer?

Yes, the SSA-DF Secure Seal Analyzer has the capability to store up to 1,000 test results and 30 product profiles, along with 10 operator profiles. This feature allows for efficient data management and retrieval for future testing needs.

What optional components are available for the SSA-DF Secure Seal Analyzer?

Optional components for the SSA-DF include QUALIPRESS Software for enhanced control and data management, an automatic leak detection module, a cap test assembly, an inner pressure measuring module, and an additional booster to increase line pressure up to four times.

Is the SSA-DF Secure Seal Analyzer easy to use?

Yes, the SSA-DF is designed for user-friendliness with a one-button startup and automated controls, making it easy to operate. Its adjustable specifications and settings cater to various bottle testing needs, enhancing overall usability.
