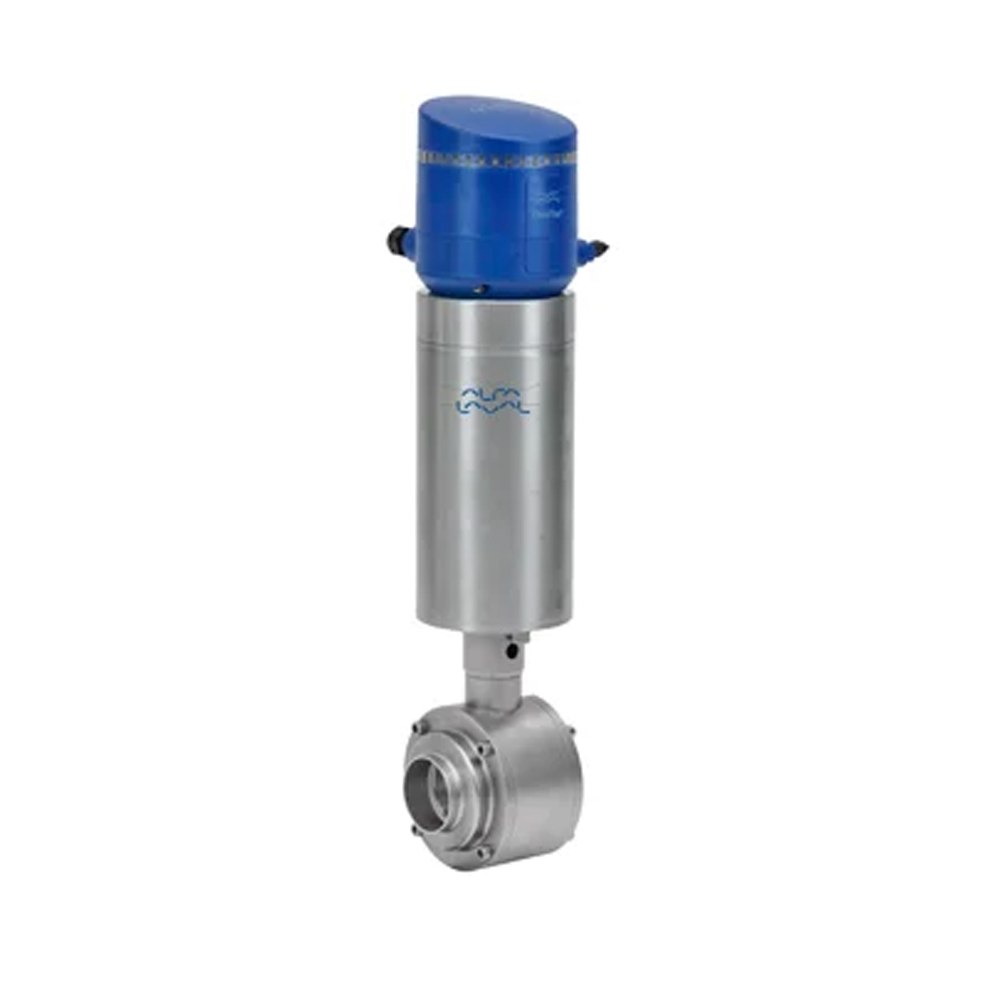

SBV Sanitary Ball Valve
| Application | |
|---|---|
| Brand | |
| Industry | , |
| Access-products |
The Alfa Laval Sanitary Ball Valve (SBV) is a hygienic ball valve designed with a bore diameter the same size as the pipeline diameter. The full-bore design with zero flow restriction and minimum pressure drop makes the SBV the optimum choice to handle high-viscosity or particulate liquids. It is also ideal for use in pigging systems to prevent product waste and optimize plant performance.
Sanitary ball valve featuring a full-bore design that enables full fluid flow with minimal pressure drop
- Reliable full-flow performance, especially for pigging systems
- Compact, straightforward hygienic design
- Versatile operation with automated or manual control
- Durable and water hammer-safe
- Easy to clean (optional cavity filler or cavity cleaning)
The Alfa Laval SBV valve is ideal for use as a hygienic product valve across the dairy, food, beverage, brewery, chemical and many other industries. The Alfa Laval ball valve delivers reliable full-flow performance in hygienic applications.
How does the SBV Sanitary Ball Valve work
Construction
The Alfa Laval SBV sanitary ball valve consists of a valve body, two flanges, PTFE valve seats, ball, stem unit and either a handle for manual operation, or a bonnet and pneumatic actuator for automated operation. For quick and easy inspection and maintenance, the valve easily assembles and disassembles with welded-end flange screws.
Operating principle
A precision-made ball with a bore, or opening, is positioned inside the valve body between two flanges and two PTFE valve seats.
Options
- Quarter-turn handle for manual operation or pneumatic actuator for automated operation
- Bracket for mounting inductive proximity switches
- ThinkTop® valve sensing and control unit
- Fittings in accordance with required standard (ISO or DIN)
- PTFE encapsulated valve seats
- Valve seat cleaning connections
- O-rings in NBR, Q (Silicone), FPM (Viton)
