A high-precision tool designed for measuring internal pressure or vacuum in PET bottles, offering versatile and accurate readings with an easy-to-use digital interface. Ideal for ensuring quality control in various applications, it accommodates all PET bottle samples and provides reliable results.

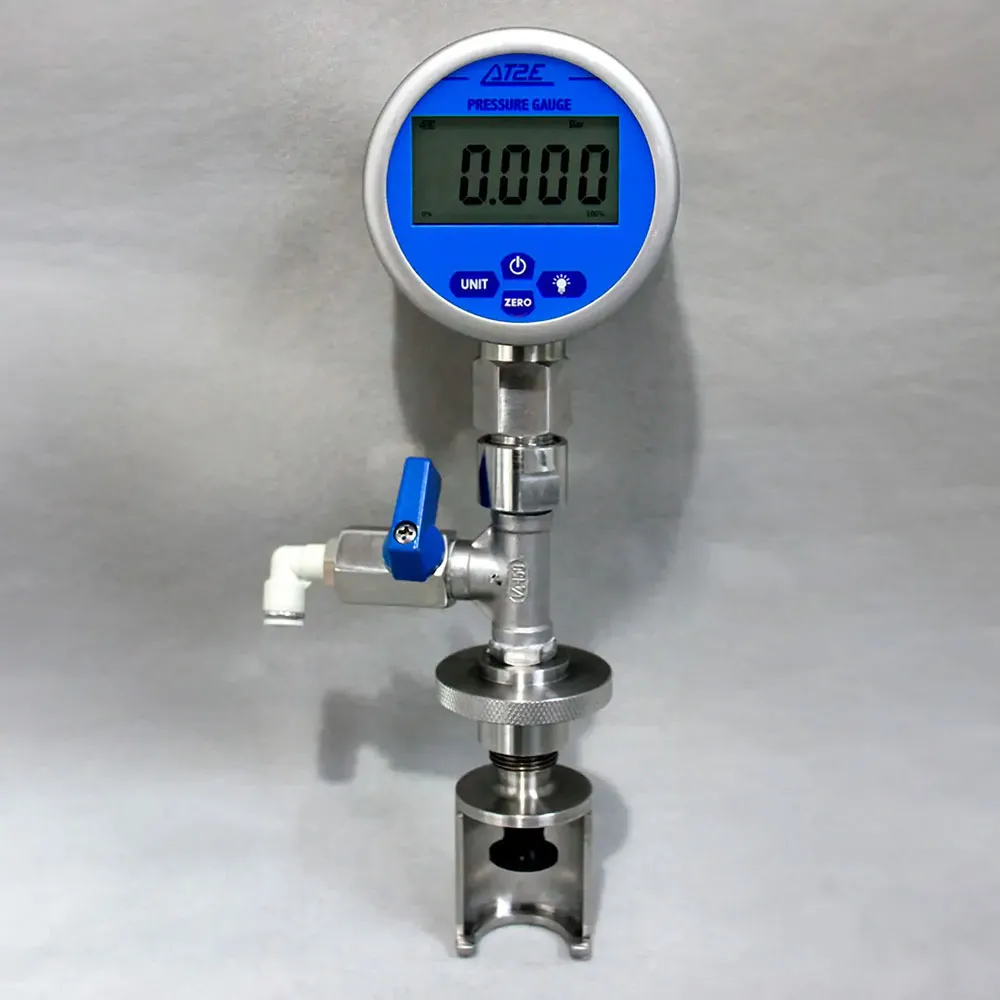

AT2E’s PVG-P Portable Pressure and Vacuum Gauge for PET Bottles
The PVG-P Portable Pressure and Vacuum Gauge is designed to measure internal pressure or vacuum in PET bottle samples with high accuracy and ease of use.
Key Features:

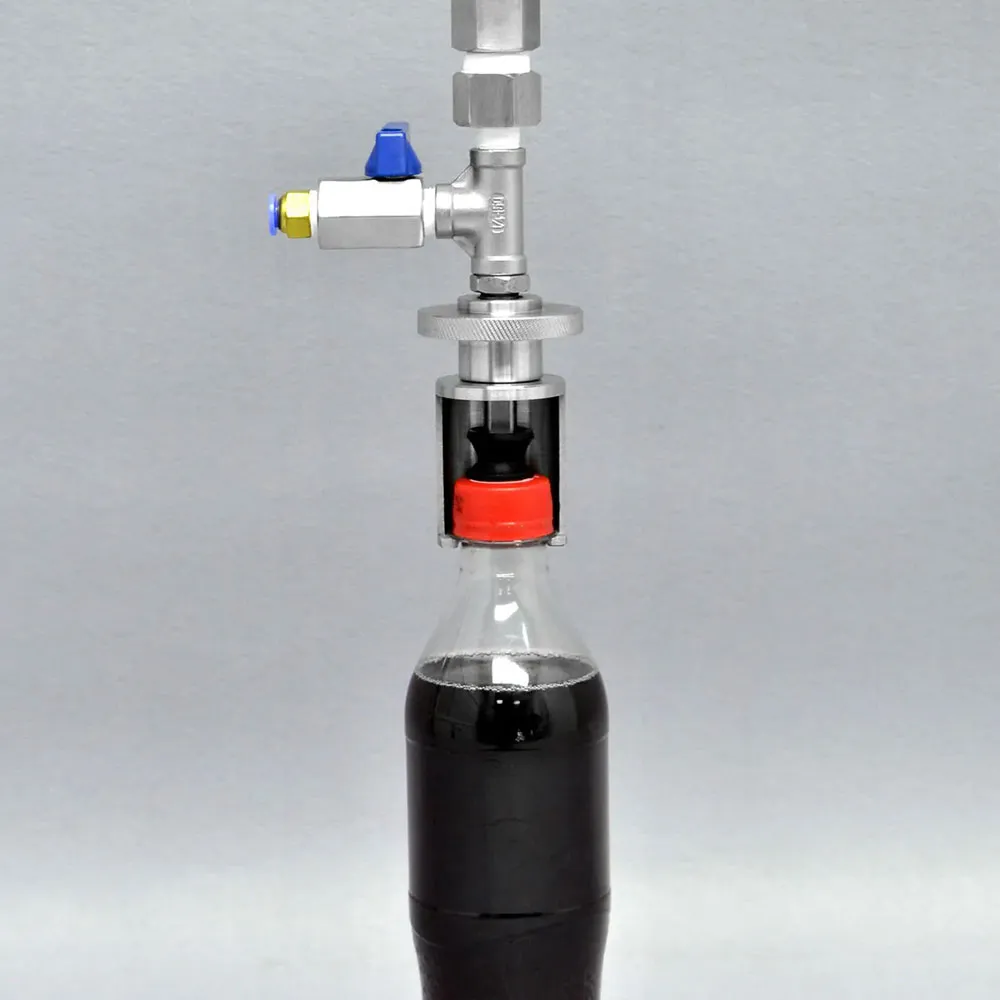

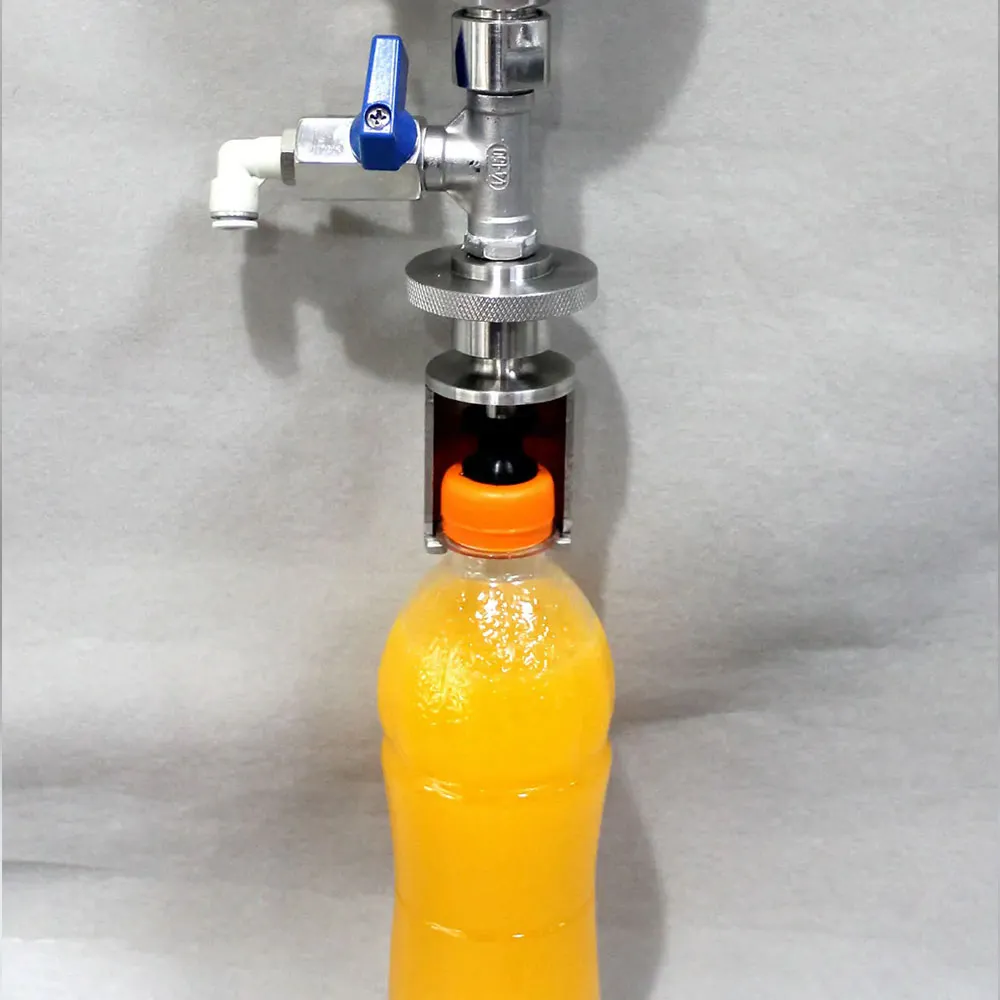

- User-Friendly Operation:Place the PVG-P under the finish neck, align the needle with the cap’s center, and screw the nut. The needle will pierce the cap without leakage, allowing for accurate measurement of pressure or vacuum.
- Versatile Measurement:The gauge measures both pressure and vacuum with a high-resolution digital display. It operates within a range of -15 to 85 psi (-1 to 6 bar) and provides readings in kgf/cm², MPa, kPa, bar, and psi.
- High Precision:With a resolution of 0.01 psi (0.001 bar) and a precision of 0.1% full scale (F.S.), the PVG-P delivers reliable readings for quality control across various applications.
Advantages:
- Easy to use
- Measures both vacuum and pressure
- High accuracy
- Compatible with all PET bottle samples
Specifications:
- Measurement Range: -15 to 85 psi (-1 to 6 bar)
- Units: kgf/cm², MPa, kPa, bar, psi
- Resolution: 0.01 psi (0.001 bar)
- Precision: 0.1% F.S.
Optional Add-On:
- Calibration Certificate
FAQ for PVG-P Portable Pressure and Vacuum Gauge for PET Bottles
What is the PVG-P Portable Pressure and Vacuum Gauge used for?
The PVG-P is designed to measure the internal pressure or vacuum in PET bottles, making it an essential tool for quality control in various applications within the beverage and packaging industries.
What is the measurement range of the PVG-P Portable Pressure and Vacuum Gauge?
The gauge operates within a measurement range of -15 to 85 psi (-1 to 6 bar), allowing it to accurately assess both pressure and vacuum conditions in PET bottles.
How accurate is the PVG-P Portable Pressure and Vacuum Gauge?
The PVG-P offers high precision with a resolution of 0.01 psi (0.001 bar) and a precision of 0.1% full scale, ensuring reliable and consistent readings for quality assurance.
What units of measurement does the PVG-P support?
The gauge provides readings in multiple units, including kgf/cm², MPa, kPa, bar, and psi, allowing users to select the most convenient unit for their needs.
Is the PVG-P Portable Pressure and Vacuum Gauge easy to use?
Yes, the PVG-P is designed for user-friendly operation. Simply place the gauge under the bottle’s finish neck, align the needle, and screw the nut to pierce the cap without leakage, enabling accurate measurement.
Are there any optional accessories available for the PVG-P?
Yes, an optional Calibration Certificate is available to ensure the accuracy and reliability of your PVG-P gauge, providing peace of mind for quality control processes.
