PVG-A – Pressure or Vacuum Gauge (Analog)

Application

Brand

Industry

Machinery Type

Lab industrial solution
Access-products

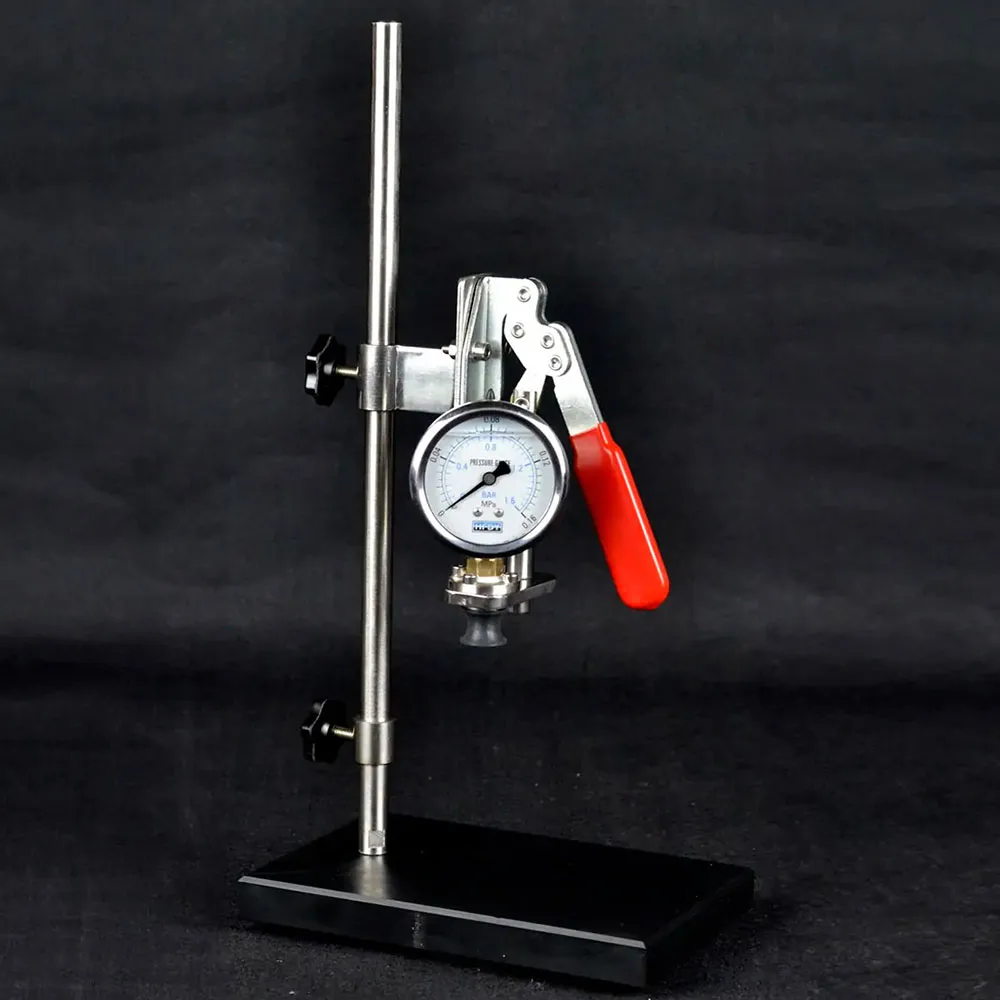

A precision analog instrument designed to measure either pressure or vacuum in cans or bottles, featuring an easy-to-read display and a simple, user-friendly operation. It provides accurate measurements and is compatible with various sample types.

Description

The product shown in the video is the digital model; the PVG-A version has an analog gauge.

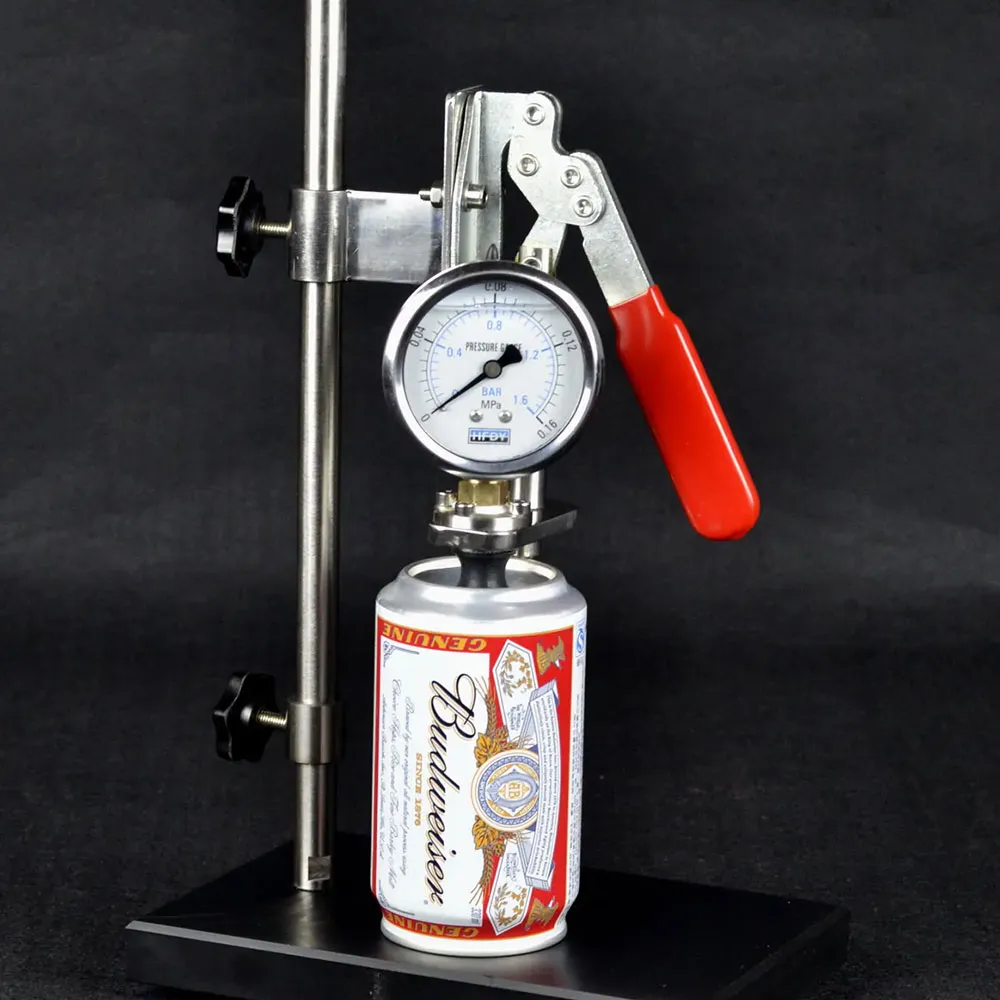

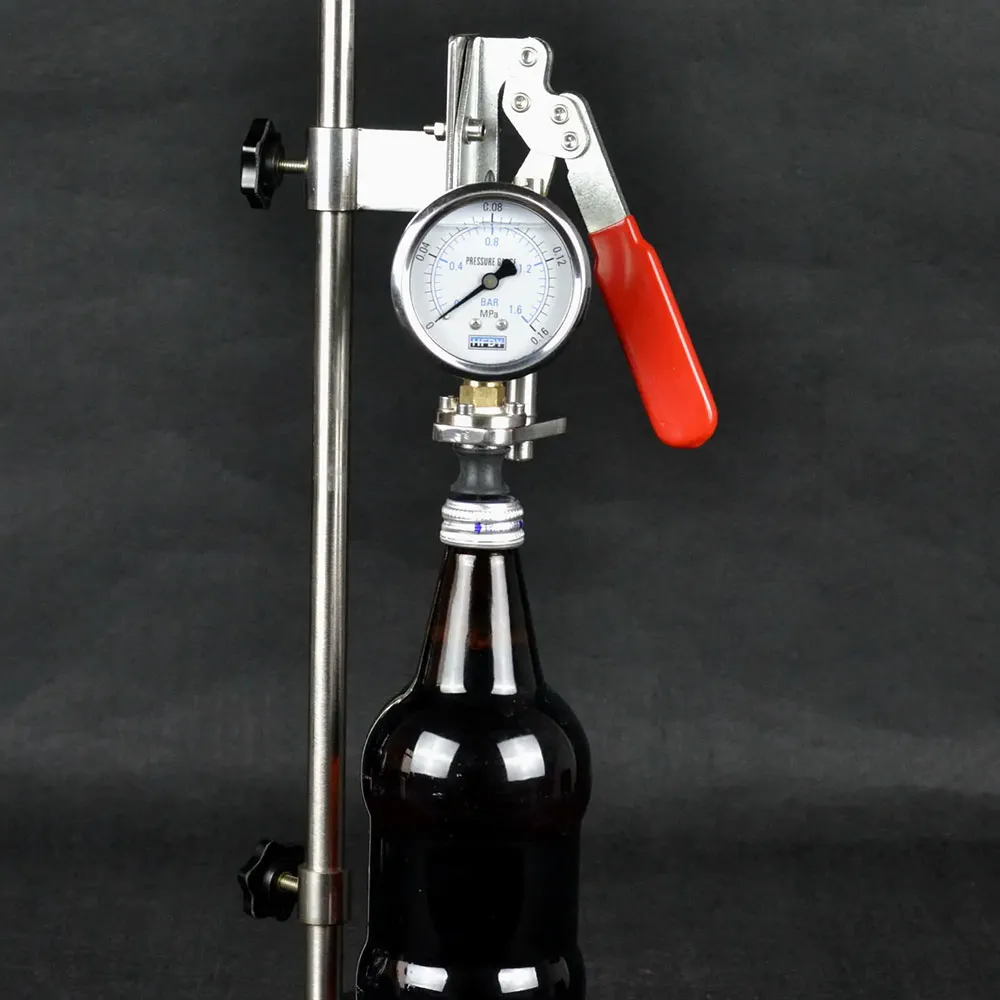

AT2E’s PVG-A is designed to measure either the pressure or vacuum of cans or bottles. To use, simply place the sample under the manometer or vacuum meter, lower the lever, and read the value.

Note: The PVG-A cannot measure both pressure and vacuum simultaneously like the digital model PVG-D. When ordering, please specify whether you need to measure pressure or vacuum.

Advantages:

  • Easy to use
  • Accurate measurements
  • Compatible with various sample types

Specifications:

Pressure Measurement:

  • Measurement Range: 0 to 85 psi (0 to 6 bar)
  • Units: Bar, MPa (other units available upon request)
  • Resolution: 1.5 psi (0.1 bar)
  • Precision: 5% F.S.
  • Weight: 6.5 lbs (3 kg)

Vacuum Measurement:

  • Measurement Range: -15 to 0 psi (-1 to 0 bar)
  • Units: Bar, MPa (other units available upon request)
  • Resolution: 1.5 psi (0.1 bar)
  • Precision: 5% F.S.
  • Weight: 6.5 lbs (3 kg)

Options:

  • Neck Support for PET Bottles
  • Calibration Certificate

FAQ for PVG-A – Pressure or Vacuum Gauge (Analog)

What is the PVG-A Pressure or Vacuum Gauge used for?

The PVG-A is a precision analog instrument designed to measure either pressure or vacuum in cans or bottles. It is ideal for quality control in various industries, providing accurate measurements for different sample types.

How do I operate the PVG-A Pressure or Vacuum Gauge?

To use the PVG-A, simply place the sample under the manometer or vacuum meter, lower the lever, and read the value displayed on the gauge. It features a user-friendly design for easy operation.

What are the measurement ranges for the PVG-A?

The PVG-A has a pressure measurement range of 0 to 85 psi (0 to 6 bar) and a vacuum measurement range of -15 to 0 psi (-1 to 0 bar). It provides accurate readings within these specified ranges.

Can the PVG-A measure both pressure and vacuum at the same time?

No, the PVG-A cannot measure both pressure and vacuum simultaneously. When ordering, you must specify whether you need to measure pressure or vacuum, as it is designed for one function at a time.

What are the available options for the PVG-A Gauge?

Optional features for the PVG-A include a Neck Support for PET Bottles and a Calibration Certificate, which can enhance the functionality and reliability of the gauge.

What is the precision of the PVG-A Pressure or Vacuum Gauge?

The PVG-A offers a precision of 5% Full Scale (F.S.) for both pressure and vacuum measurements, ensuring reliable and accurate results for your testing needs.
