Pump Sizes F35 – F95
| Application | |
|---|---|
| Brand | |
| Industry | , |
| Access-products |
SPX FLOW Johnson Pump Marine is one of the leading original equipment pump suppliers to the largest manufacturers world-wide of inboard engines. Engine cooling pumps, the F-series, are available in several different styles and sizes to satisfy different cooling system needs. Flanged pumps which mount directly to the engine and crank shaft pulley mounted pumps are available for a wide variety of engines. Both flange mounted and pulley driven pedestal pumps can be used to provide cooling with a maximum of ease and flexibility.
Description
Performance and Capabilities
- Limited 3 Year Warranty
- Self-priming: a dry pump can lift water up to 3 meters
- Can pass large solids without clogging or damage
- Capacity up to 625 liters/min (9900 gal/hr)
Material and Operational Guidelines
- Standard neoprene rubber impeller for raw or fresh water
- Cannot run dry for more than 30 seconds — water is required for lubrication
- Wear parts are easily replaceable
- Service kits available for all standard models

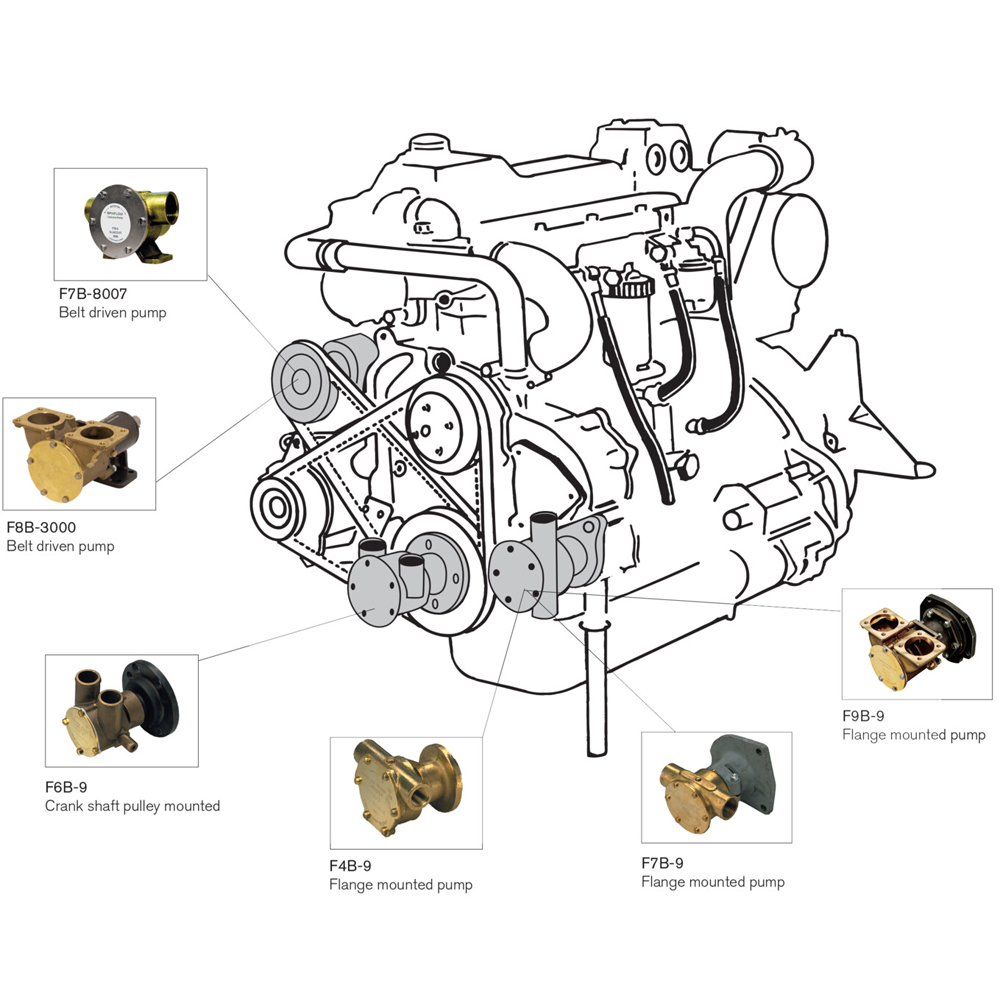

Mounting and Configuration Options
- Flange Mounted Pumps: F4B-9, F7B-9, F9B-9
- Crank Shaft Pulley Mounted Pumps: F6B-9
- Belt/Pulley Driven Pedestal Pumps: F7B-8, F8B-3000
- Pump ports available from 3/8″ to 2 1/2″
