A precision tool designed for accurately measuring the perpendicularity of various preform sizes, ensuring high-quality production standards. Its adaptable clamping mechanism allows for measurements tailored to specific preform diameters.
PPG-A / PPG-D Preform Perpendicularity Gauge

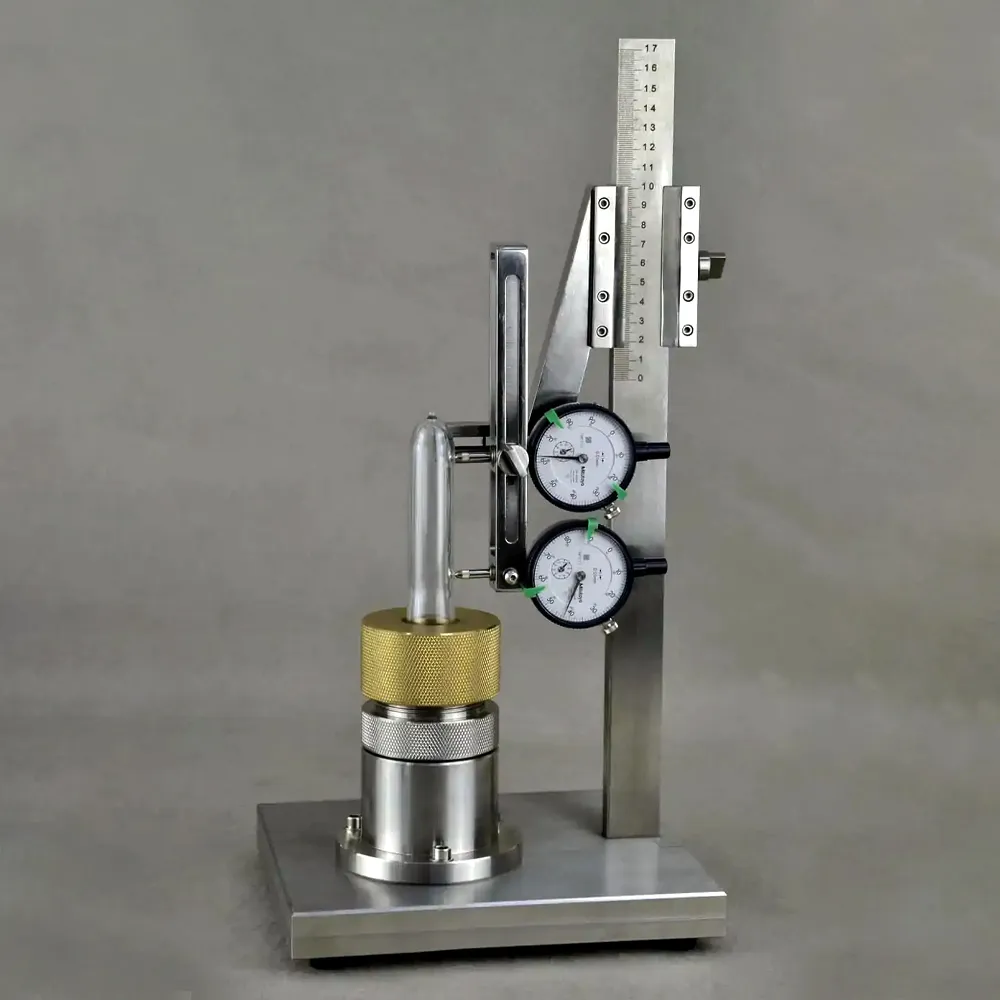

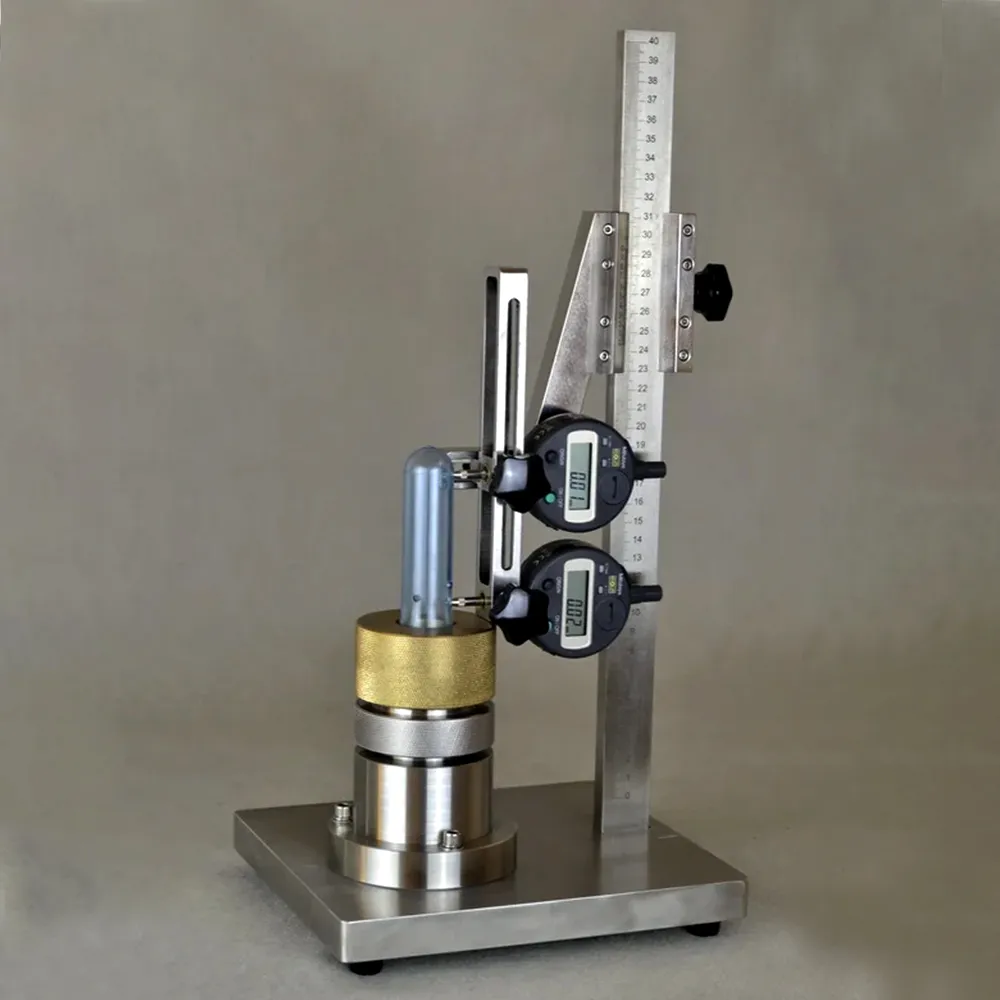

The PPG-A / PPG-D Preform Perpendicularity Gauge is a precision instrument designed to measure the perpendicularity of preforms with high accuracy. It is equipped with a specially designed changeable clamping part, allowing for accurate measurement of preforms of various sizes.
Key Features:
- The clamping support and calibration bar are tailored to match the diameter of each preform’s opening, ensuring precise measurements.
- Detailed preform specifications should be provided when ordering to ensure compatibility.
Technical Specifications:
- Sample range: Customizable based on order
- Resolution: 0.01 mm
- Dimensions: 300 (L) x 250 (W) x 450 (H) mm (11.8″ x 9.8″ x 17.7″)
- Net weight: 15 kg (33.1 lbs)
Optional Parts:
- Additional clamping supports for various preform diameters and sizes are available.
FAQ for PPG-A / PPG-D Preform Perpendicularity Gauge
What is the purpose of the PPG-A / PPG-D Preform Perpendicularity Gauge?
The PPG-A / PPG-D Preform Perpendicularity Gauge is designed to accurately measure the perpendicularity of various preform sizes. This ensures that production standards are met and maintained for high-quality manufacturing processes.
What are the key features of the PPG-A / PPG-D Preform Perpendicularity Gauge?
This gauge features a changeable clamping part that allows for precise measurement of preforms of different sizes. The clamping support and calibration bar are tailored to fit the diameter of each preform’s opening, ensuring accurate results.
What are the technical specifications of the PPG-A / PPG-D Preform Perpendicularity Gauge?
The PPG-A / PPG-D has a customizable sample range based on the order, a resolution of 0.01 mm, and dimensions of 300 (L) x 250 (W) x 450 (H) mm. It has a net weight of 15 kg (33.1 lbs), making it a robust and portable tool for precise measurements.
Can I order additional clamping supports for different preform sizes?
Yes, additional clamping supports are available for various preform diameters and sizes. When placing your order, be sure to specify the preform specifications to ensure compatibility with the gauge.
How do I ensure the PPG-A / PPG-D Preform Perpendicularity Gauge is compatible with my preforms?
To ensure compatibility, you should provide detailed specifications of your preforms when ordering the gauge. This will help in selecting the appropriate clamping support and calibration bar for accurate measurements.
