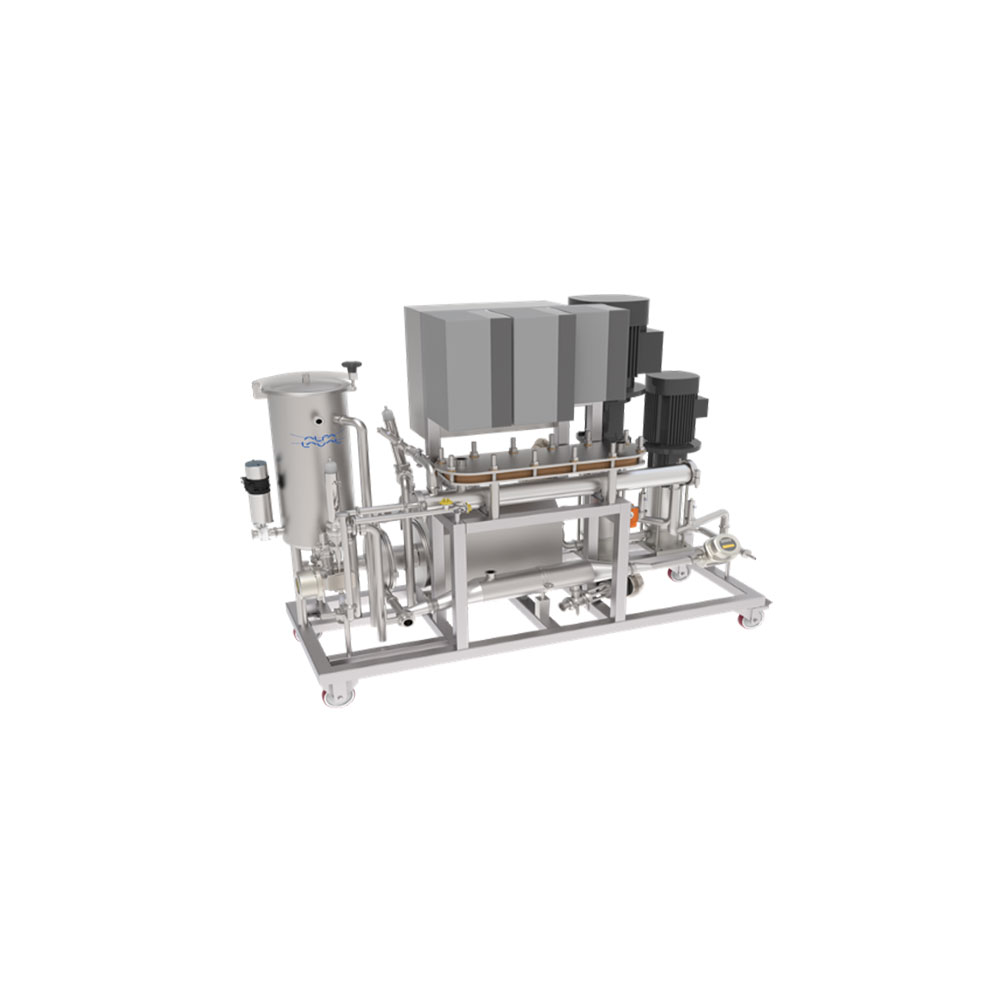

The Alfa Laval PilotUnit Multi is a multipurpose system with a broad selection of options that makes it possible to test all different kinds of membrane filtration products for microfiltration, ultrafiltration, nanofiltration and reverse osmosis in batch or semi-batch mode. It is an ideal tool for easy and reliable scale-up of processes or even small-scale production.
The Alfa Laval PilotUnit Multi is a multipurpose system with a broad selection of options that makes it possible to test all different kinds of membrane filtration products for microfiltration, ultrafiltration, nanofiltration and reverse osmosis in batch or semi-batch mode. It is an ideal tool for easy and reliable scale-up of processes or even small-scale production.
Fully integrated, space-saving and state-of-the-art filtration system with broad selection of options
- Easy to use – fully integrated system on a wheeled stainless steel structure. Data logging included and easy access via USB
- Compact and robust – comprises housing for single 3.8″ spiral membrane, 40 l tank, pump, heat exchanger, valves, instruments and control system
- Low hold-up volume for high product concentration and minimal test media amount
- Flexible – pump system can handle low to high viscosity solutions and operates with the whole range of feed spacers (30-80 mil).
- Adaptable – suitable for pHt™ membranes with high temperature and pH tolerance
Alfa Laval PilotUnit Multi has a flexible membrane area (3–15 m²) and can handle volumes between 50 and 1000 l. The basic unit is available with a number of options, including online monitoring and data collection, to enhance the performance of your membrane filtration process. You can double the spiral membrane area by adding another housing, while the addition of an Alfa Laval LabStak™ M39H module enables you to simultaneously test different MF/UF flat sheet membranes (up to 2 m²). If you want to test our membrane filtration products for nanofiltration and reverse osmosis you will find an option for this as well.
