A durable, electric-free device designed to efficiently test the internal pressure resistance of PET bottles up to 3.3 liters, ensuring container safety and quality across various environments.

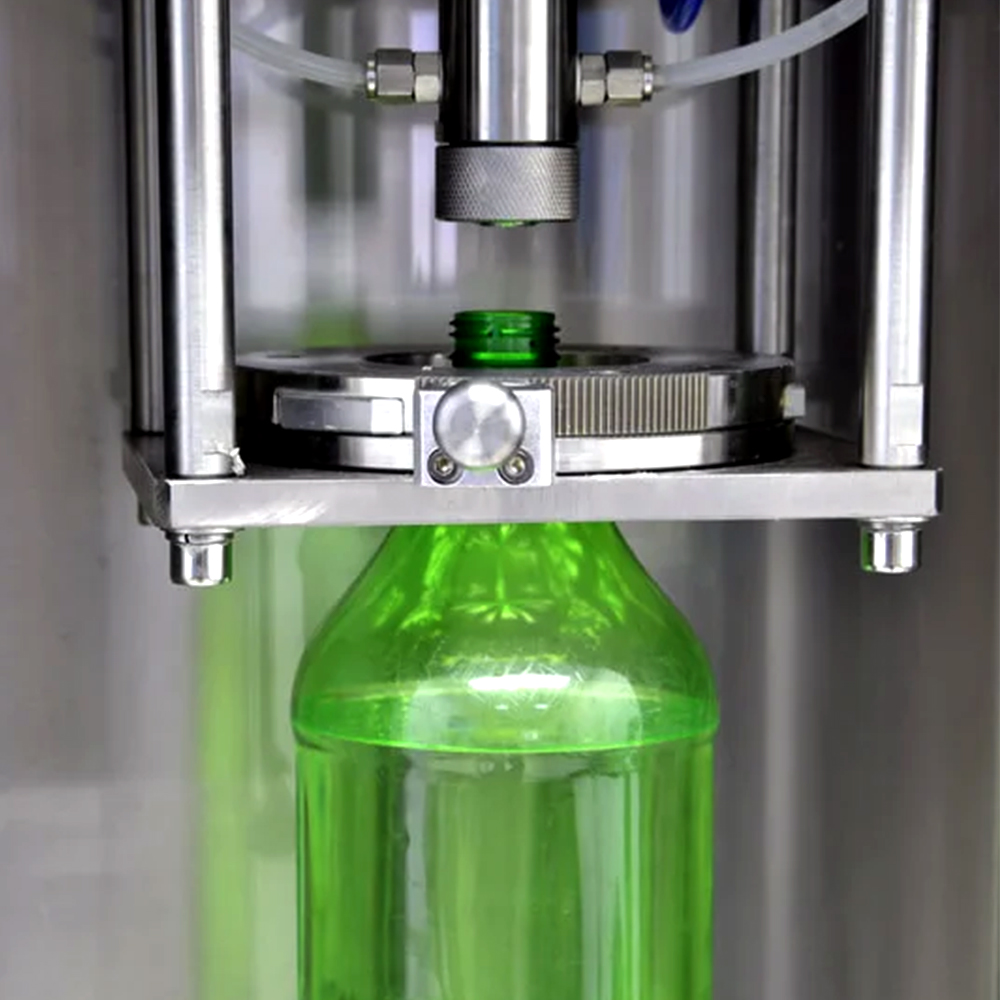

PBBT-ECO PET Bottle Burst Tester
The PBBT-ECO is specialized equipment designed to test the internal pressure resistance of PET bottles. It features rapid pressurization and high-pressure testing capabilities, ensuring the durability and safety of PET containers.
High-Efficiency Testing
The PBBT-ECO operates without electricity, making it versatile and suitable for various environments. It is capable of testing bottles up to 3.3 liters in size, with optional boosters available for higher pressure requirements. The adjustable ramp pressure and compatible clamping system improve the testing process.
User-Friendly Design
Constructed from stainless steel, the PBBT-ECO is durable and easy to maintain. Its user-friendly design ensures simple operation, with built-in safety features to protect operators during testing.
Technical Specifications
- Measuring Range: 0-20 bar (0-300 psi)
- Resolution: 0.5 bar / 5 psi
- Sample Range: Up to 3.3 L bottles (consult for larger sizes)
- Pressure Requirements:
- Water inlet pressure: > 1.5 bar
- Inlet pressure: 0-22 bar (should be at least 2 bar higher than test pressure)
- Temperature Range: 4 to 50°C (40 to 122°F)
- Dimensions: 510 (L) × 720 (W) × 990 (H) mm
- Net Weight: 85 kg
Optional Components
- Additional pressure booster
- Compatible clamping system
- Precision pressure gauge for calibration
FAQ for PBBT-ECO PET Bottle Burst Tester
What is the PBBT-ECO PET Bottle Burst Tester used for?
The PBBT-ECO PET Bottle Burst Tester is designed to efficiently test the internal pressure resistance of PET bottles, ensuring their safety and quality by determining their durability under pressure.
How does the PBBT-ECO operate without electricity?
The PBBT-ECO operates using a manual pressurization system, making it versatile for use in various environments where electricity may not be available. This feature allows for efficient testing without the need for electrical components.
What is the maximum bottle size that the PBBT-ECO can test?
The PBBT-ECO can test PET bottles up to 3.3 liters in size. For larger bottles, it is recommended to consult with the manufacturer for compatibility and testing capabilities.
What are the key technical specifications of the PBBT-ECO?
The PBBT-ECO has a measuring range of 0-20 bar (0-300 psi) with a resolution of 0.5 bar / 5 psi. It operates within a temperature range of 4 to 50°C (40 to 122°F) and has dimensions of 510 (L) × 720 (W) × 990 (H) mm, weighing 85 kg.
Are there any optional components available for the PBBT-ECO?
Yes, optional components include an additional pressure booster for higher pressure testing, a compatible clamping system for better bottle stability, and a precision pressure gauge for calibration purposes.
What safety features does the PBBT-ECO PET Bottle Burst Tester include?
The PBBT-ECO is designed with built-in safety features that protect operators during testing, ensuring a safe working environment while conducting pressure tests on PET bottles.
