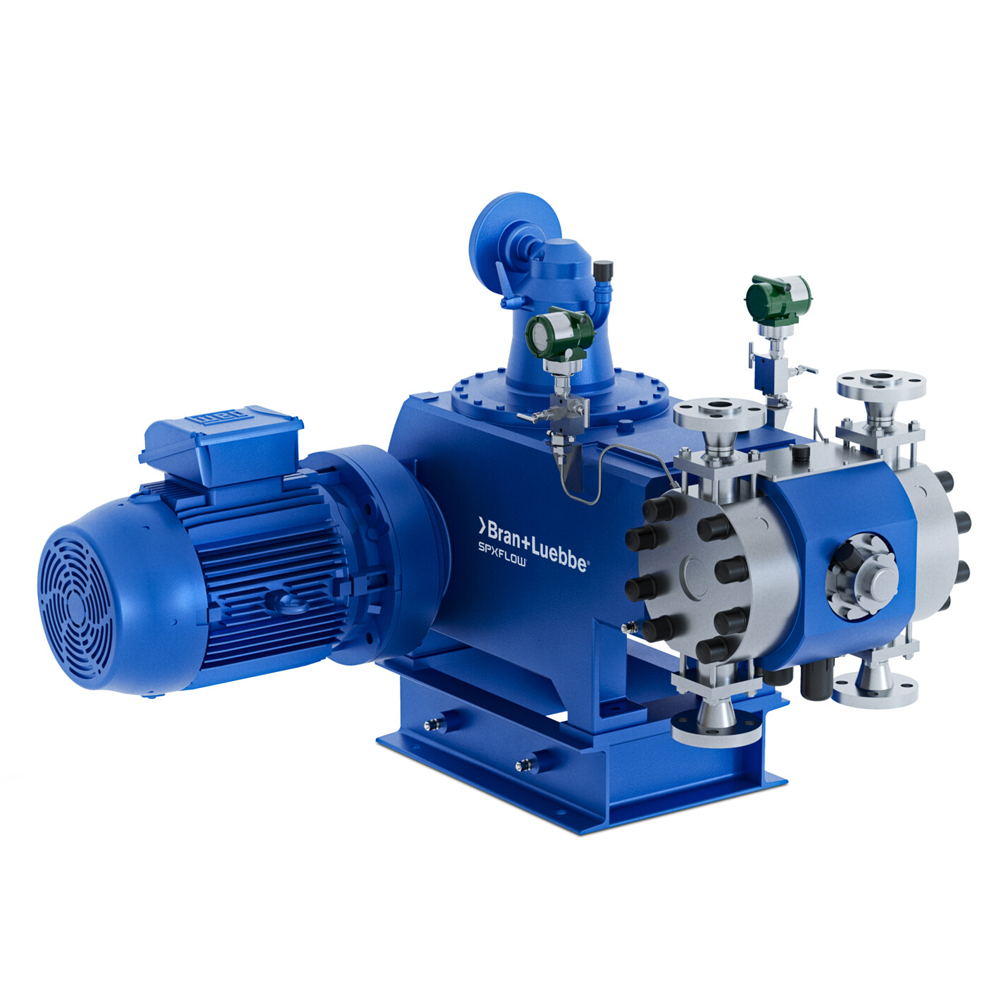

NOVADOS B Metering Pump
| Application | |
|---|---|
| Brand | |
| Industry | , |
| Access-products |
Nearly all gear sizes in the NOVADOS series can be combined for process and metering pumps to achieve the required flow rate and pressure parameters.
Description
NOVADOS Pump Family Overview
Modular Design for Flow and Pressure Control
The NOVADOS Family includes both leak-free diaphragm and plunger pumps. Gear sizes in the series can be configured for optimal flow rate and pressure needs.
Materials of Construction
Liquid-Wetted Components
- Stainless Steel 1.4571 or 1.4462 housings
- PTFE or Stainless Steel 1.4310 diaphragms
- Stainless steel or ceramic plungers
- Optional materials: Super Duplex, Hastelloy, Titanium, and others
Pump Gear Design
Mechanical System
- Worm gear with multiple reduction ratios
- Splash lubrication
- Stroke length adjustment using eccentric Z-shaped crankshaft
Flow Rate Control Options
Manual and Automated Modes
- Manual, electric, pneumatic, or variable speed operation
Drive Technology
Electric and Custom Drive Options
- Electric motor with fixed or variable speed
- Custom drive configurations available upon request
Installation and Operating Conditions
Environmental Suitability
- Hazardous areas: up to Zone 1 IIC T4 (Zone 22 available upon request)
- Ambient temperature: −40°C to +50°C
- Fluid temperature: −40°C to +150°C
*These values are indicative. Please specify actual operating conditions when inquiring.
Performance Benefits
Flexible, Scalable, Efficient
- Hermetically sealed pump design
- Individually adjustable stroke lengths for fine-tuned control
- Variable speed drive maintains efficiency across conditions
- Automation enhances productivity
- Systems can be expanded with additional pumps or automated control
