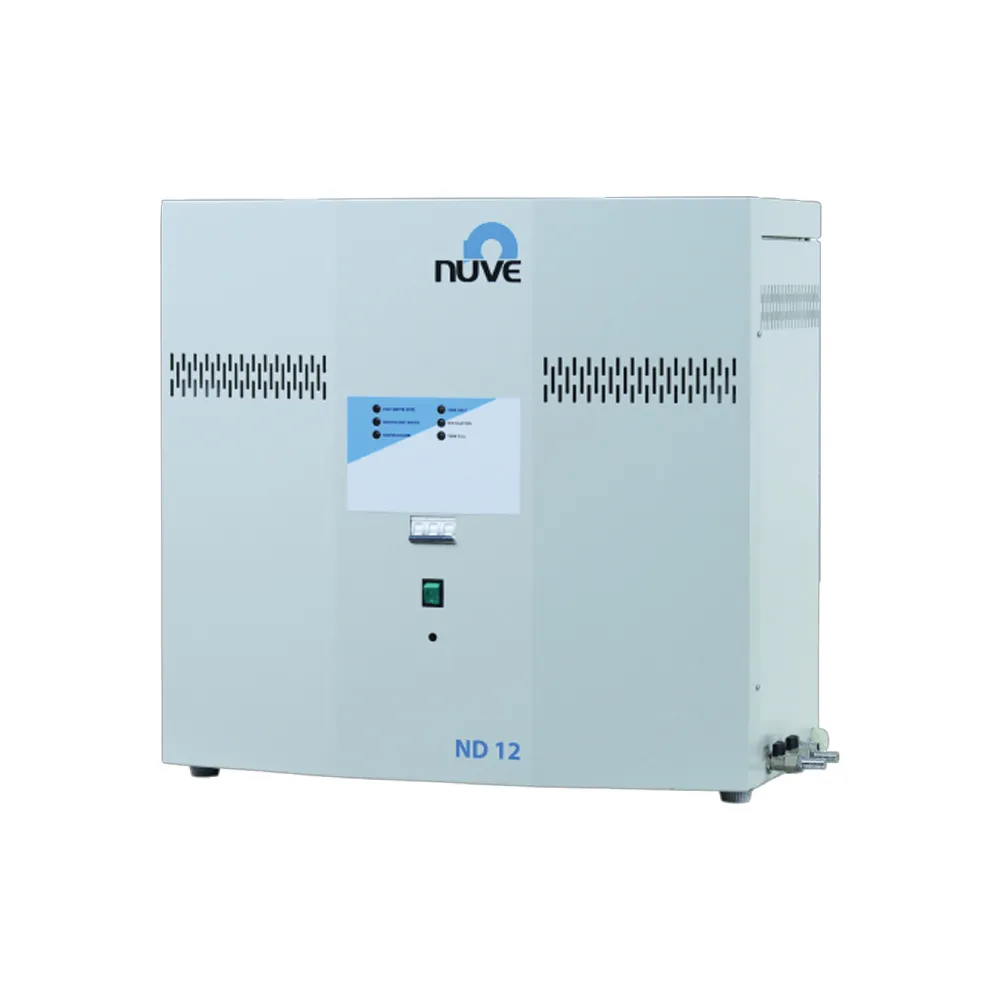

ND 4/12 - Image 1
Click to enlarge
AT2E

ND 4/12

Application

Brand

Industry

Machinery Type

Lab industrial solution
Access-products

An essential source of distilled water for most laboratories, ND Series Water Distillers use cooling water to condense and then use the pre-heated water to reduce boiling time and running costs.Extended life and lower operating costs are provided by siliphos cartridge filter which decreases calcification of the system.Safe operation is ensured by electronic control of the water level, with alarm and heater shut-off in case of low water level from a lack of water supply.

Description

Description

  • Capacity: ND 4: 4 lt/hr, ND 12: 12 lt/hr.
  • Distilled water storage tank capacity: ND 4: 8 litres, ND 12: 24 litres.
  • CO2 degassing through the gas exhaust pipe.
  • Energy saving design by the distillation of heated cooling water.
  • Suitable for bench and wall mounting.
  • Fully automatic operation with microprocessor control system.
  • Protected heaters against running dry.
  • Stainless steel heaters.
  • Boiling tank, storage tank and condenser made of stainless steel.
  • Easy servicing to decrease maintenance time.
  • Safety system and warning led lights for:
    – High water pressure
    – Low water pressure
    – Heater failure
    – Half full storage tank
    – Full storage tank
  • Water supply controlled by the solenoid valve which stops the water flow when the distilled water tank is full and the distillation is re-started when water tank is withdrawn.
  • Supplied with siliphos cartridge filter to decrease calcification on the heaters
