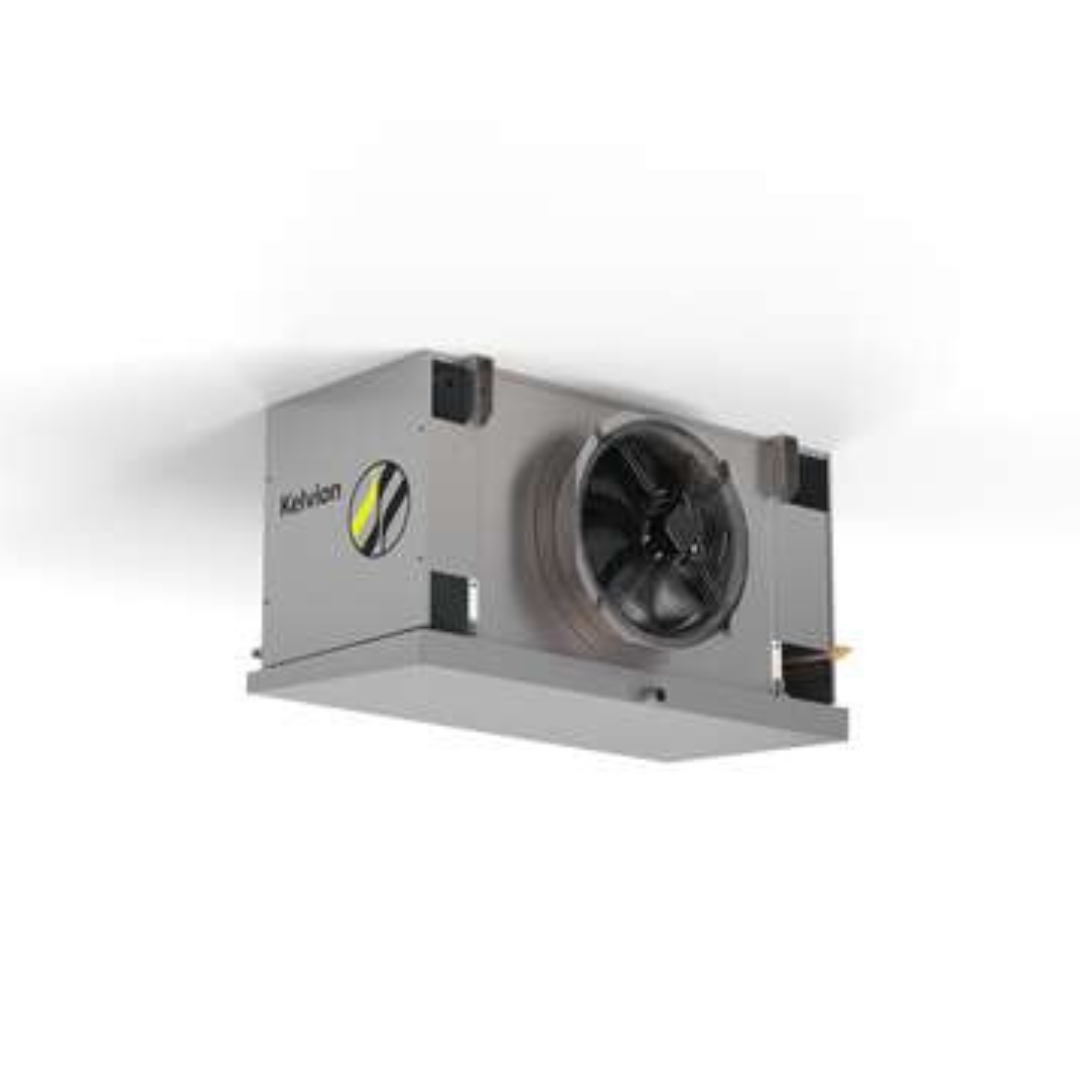

Kelvion VRS Cubic Air Cooler
| Access-products | |
|---|---|
| Application | , |
| Brand | |
| Industry | , , |
The Kelvion VRS is a fully customized cubic air cooler (evaporator) manufactured in complete stainless steel for demanding industrial refrigeration applications. It is designed to provide high cooling performance, excellent hygiene, flexible airflow options, and easy maintenance, making it ideal for food processing, dairy, beverage, pharmaceutical, and cold storage facilities.
Key Features
1. Complete Stainless Steel Construction
The VRS is manufactured with a fully stainless steel casing and coil, making it ideal for hygienic and corrosive environments.
Benefits
Excellent corrosion resistance
Long service life
Easy cleaning
Ideal for food-grade environments
Suitable for aggressive wash-down conditions
2. Customizable Design
The VRS can be tailored with a wide range of options and accessories.
Benefits
Project-specific configurations
Flexible installation
Adaptable to various industrial refrigeration systems
Suitable for specialized cooling requirements
3. Variable Airflow Direction
The VRS supports both airflow configurations:
Blow-through
Draw-through
Advantages
Flexible room layout
Optimized air circulation
Uniform cooling performance
Better temperature distribution
4. Optimized Heat Exchanger
The heat exchanger features an application-specific circuit design and optimized geometry.
Benefits
High heat transfer efficiency
Improved cooling capacity
Lower energy consumption
Reliable performance under varying operating conditions
5. Easy Maintenance
Designed for fast servicing with:
Hinged drip tray
Easily removable cover plates
Accessible internal components
Benefits
Reduced maintenance time
Faster cleaning
Improved hygiene
Lower service costs
Technical Highlights
Cooling Capacity
5 kW – 55 kW
Heat Exchanger
Stainless steel tubes and fins
15 mm aligned tube system
50 × 50 mm tube spacing
Optimized coil geometry
Fan System
Fan diameters: 500 mm and 630 mm
1–4 fans
AC fan technology
EC fan technology
60 Hz option
Rapid cooling configuration
Deep-freezing configuration
ATEX fan option for hazardous areas
Defrost Options
Available defrost configurations include:
Electric defrost
Hot gas defrost
Water defrost
Secondary circuit defrost
These options allow the VRS to be optimized for different temperature ranges and refrigeration systems.
Working Principle
Warm air from the refrigerated space enters the evaporator.
The refrigerant absorbs heat through the stainless steel coil.
Fans distribute cooled air using either blow-through or draw-through airflow.
Continuous circulation maintains a stable and uniform room temperature.
Result: Efficient cooling, excellent hygiene, and reliable industrial refrigeration performance.
