Flexible Impeller Pumps – AC
| Application | |
|---|---|
| Brand | |
| Industry | , |
| Access-products |

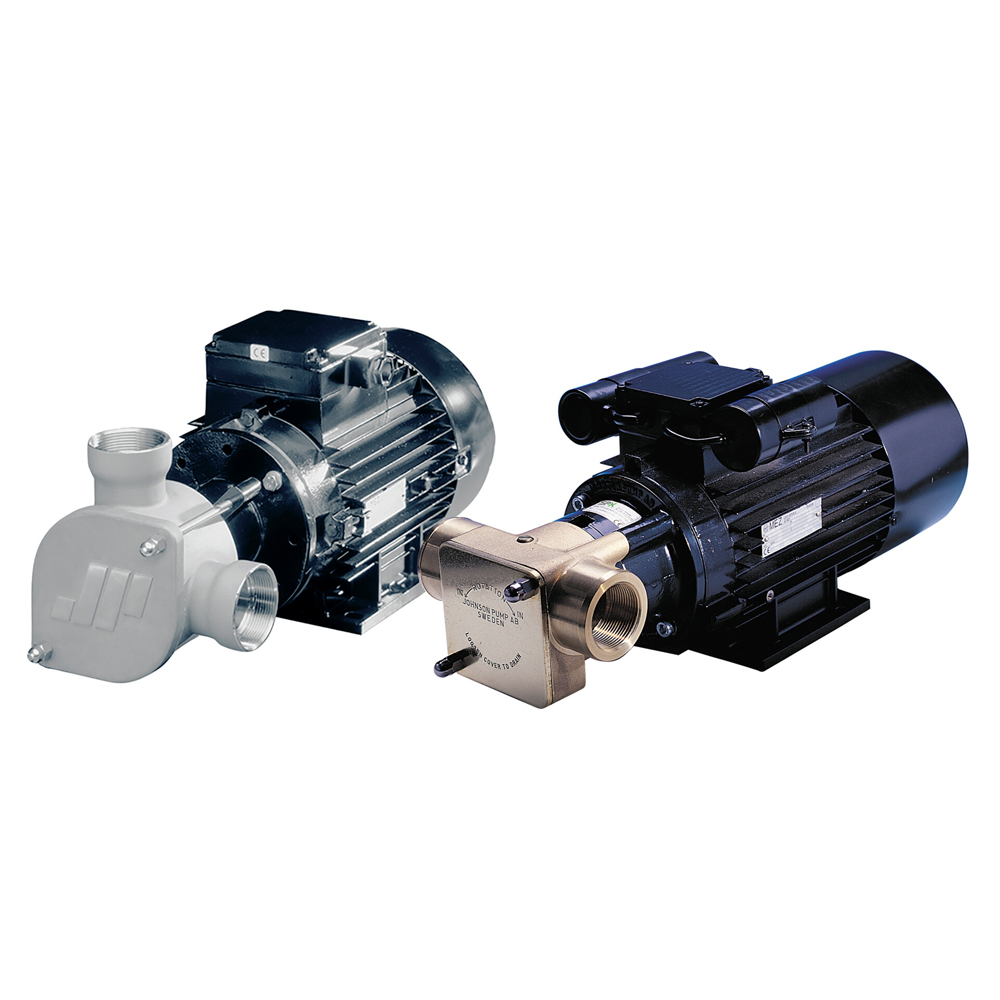

Through their versatility and flexible design, these AC-powered Flexible Impeller Pumps can be customized uniquely for each area of application. The pumps handle most liquids and slurries. In the marine environment, the pumps are especially suitable for the bilge, wash down, fire fighting, septic handling, and water circulation duties.
Description
Advantages of FIP
| Excellent self-priming capacity | A dry pump has a suction lift up to 5 meters within a few seconds |
| Pulsation free and reversible flow | The FIP-pump gives a uniform flow without pulsation |
| Compact design | The FIP has minimal outer dimensions compared to its capacity, which simplifies space and installation requirements |
| Easy maintenance and quick to clean | Unique 3-piece design reduces maintenance and cleaning time to a minimum |
Bronze pump for liquids such as saltwater, mineral oils, slurries, additives or abrasive products.
FIP25B Technical Data
Suitable for wash down, bilge, water circulation, etc. Motor sold separately.*
| Part No. | Description | Body | Connection | Impeller | Shaft | Shaft seal | Shaft end |
| To be Configured | FIP25B- BSP00M01F80 | Bronze | BSP | Neoprene | Double flat | Mechanical | Flange |
FIP40B Technical Data
Suitable for wash down, bilge, water circulation, firefighting reserve, etc. Motor sold separately.*
| Part No. | Description | Body | Connection | Impeller | Shaft | Shaft seal | Shaft end |
| To be Configured | FIP40B- BSP00M01F90 | Bronze | BSP | Neoprene | Double flat | Mechanical | Flange |
* Motors for the FIP pumps are available as 4-, 6- or 8-pole with speeds between 700-1450 rpm.
