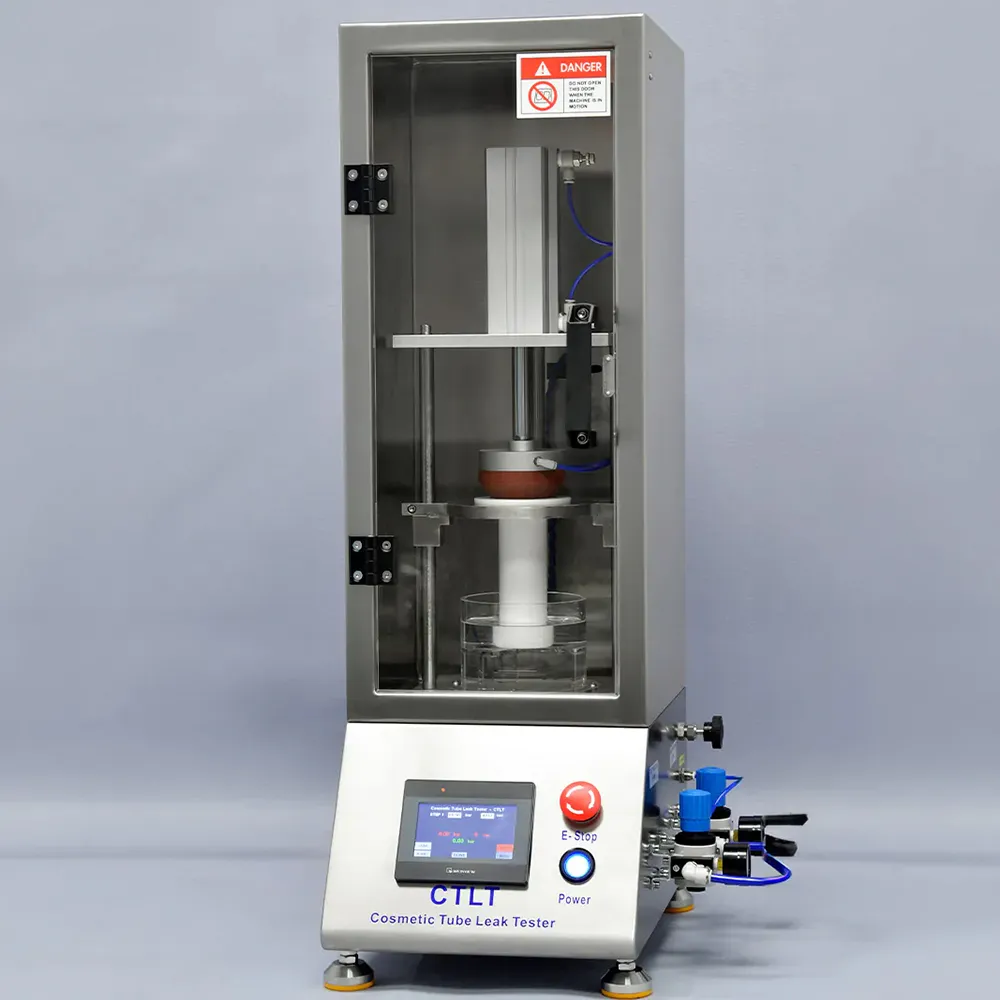

CTLT Cosmetic Tube Leak Tester
| Application | |
|---|---|
| Brand | |
| Industry | |
| Machinery Type |
Lab industrial solution |
| Access-products | , |
A device that tests the seal integrity of cosmetic tubes, accommodating various sizes and ensuring high-quality standards through precise pressure application and safety features.
Description
The CTLT Cosmetic Tube Leak Tester is designed to ensure the secure seal performance of your cosmetic tubes efficiently. It uses a seal rubber to create a temporary seal at the tube’s bottom, then applies pressure to test the tube’s integrity. This reliable method guarantees your products meet high-quality standards.
User-Friendly Operation
The CTLT features a touch screen display for easy operation and precise adjustments. Users can set the pressure and holding time to meet various testing requirements. The stainless-steel frame and enclosed test chamber enhance safety, providing a hassle-free experience for operators.
Versatile Testing Capabilities
The tester accommodates a range of tube sizes, from 1″ to 2″ in diameter. Its adjustable pressurizing rate and dual-stage settings make it versatile for different products. With a measurement range of 0-2.00 bar and a resolution of 0.01 bar, it delivers accurate results, making it an essential tool for cosmetic packaging quality control.
Additional Features
- Controlled via a touch display, offering a visual and straightforward operation.
- Adjustable pressure and holding time settings to meet various testing needs.
- The stainless-steel frame and enclosed test chamber provide explosion resistance, ensuring operator safety.
- Simple operation, offering a convenient solution for customers.
Technical Specifications
- Sample Type: Plastic or metallic tubes
- Sample Diameter: 1″ – 2″ (25 – 50 mm) (Other sizes available on request)
- Display: Touch screen
- Measurement Range: 0 – 2.00 bar
- Resolution: 0.01 bar
- Units: bar / Psi
- Adjustable Pressurizing Rate: Yes, with a regulator
- Pressure Stages: 2 stages with adjustable holding time
- Explosion Resistance: Yes
- Material: Stainless steel
- Air Supply: 0 – 8 bar
- Power Supply: AC 110 – 240 V, 50/60 Hz
- Dimensions: 13.4″ x 17″ x 34.7″ (340 x 430 x 880 mm) (W x D x H)
- Weight: 84 lbs (38 kg)
FAQ for CTLT Cosmetic Tube Leak Tester
What is the purpose of the CTLT Cosmetic Tube Leak Tester?
The CTLT Cosmetic Tube Leak Tester is designed to test the seal integrity of cosmetic tubes. It ensures that the tubes are securely sealed by applying pressure and verifying that they meet high-quality standards, which is crucial for maintaining product quality in the cosmetic industry.
What sizes of tubes can the CTLT accommodate?
The CTLT is versatile and can accommodate cosmetic tubes with diameters ranging from 1″ to 2″ (25 – 50 mm). For other sizes, custom options may be available upon request.
How does the CTLT ensure operator safety during testing?
The CTLT features a stainless-steel frame and an enclosed test chamber that provide explosion resistance, ensuring a safe operating environment for users. These safety features help to prevent accidents during the testing process.
What are the key technical specifications of the CTLT Cosmetic Tube Leak Tester?
The CTLT has a measurement range of 0 – 2.00 bar with a resolution of 0.01 bar. It operates on an air supply of 0 – 8 bar and has an adjustable pressurizing rate. The device is powered by AC 110 – 240 V and measures 13.4″ x 17″ x 34.7″ (340 x 430 x 880 mm) in dimensions, weighing 84 lbs (38 kg).
How user-friendly is the CTLT Cosmetic Tube Leak Tester?
The CTLT is designed for easy operation, featuring a touch screen display that allows users to make precise adjustments. Users can set the pressure and holding time according to their testing requirements, making it a convenient solution for quality control.
Can the CTLT be used for both plastic and metallic tubes?
Yes, the CTLT Cosmetic Tube Leak Tester is capable of testing both plastic and metallic tubes, making it a versatile tool for various cosmetic packaging applications.
