The ideal solution for the majority of application points with a maximum requirement of two feedbacks and up to three solenoid valves.
For all GEA Butterfly valves
For all GEA VARIVENT® Valves *
For all GEA ASEPTOMAG® and GEA D-tec® Valves *
(* except with monitored seat lifting)
Features
- Proven housing technology
- The highest protection class as standard
- High vibration and shock resistance
- Individual connection technology
- Self-learning initialization
- Extremely easy commissioning
- Parameters can be preset
- Standardized T.VIS® visualization with diagnostic function
Structure

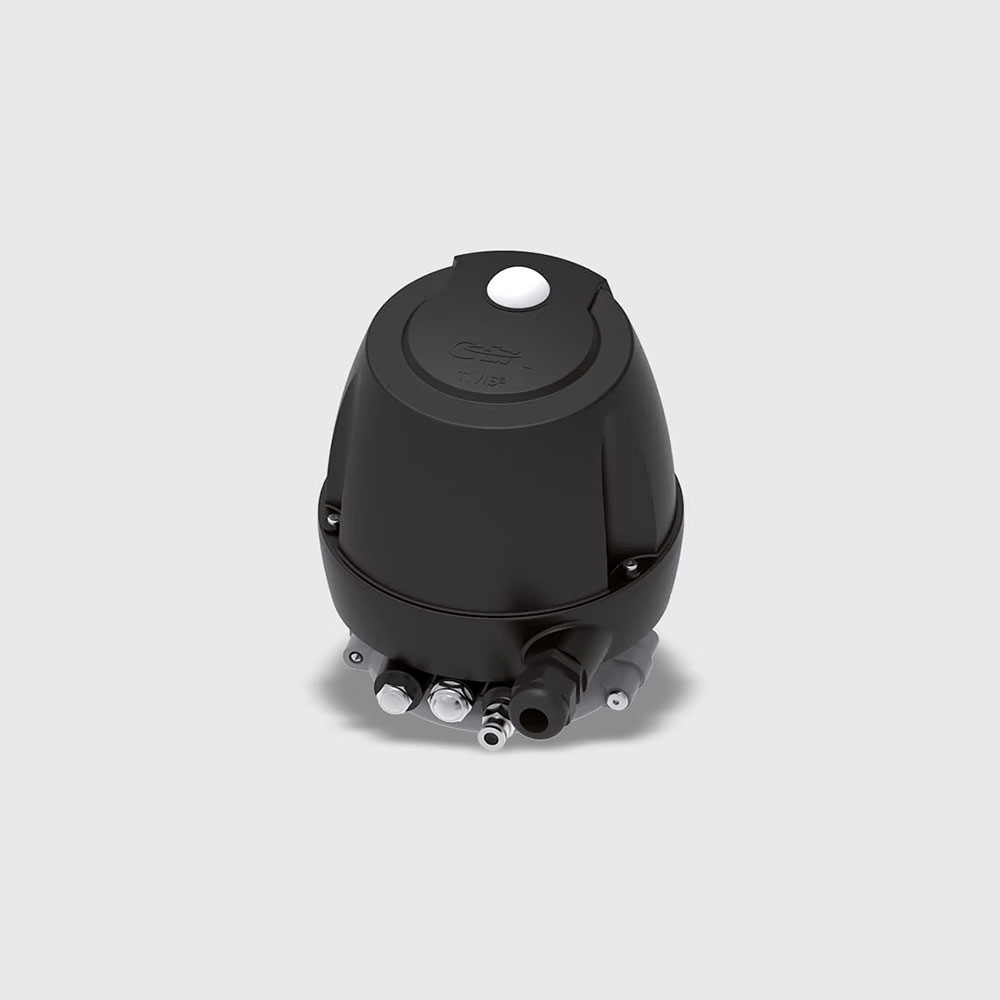

The T.VIS® M-20 is equipped with reliable and robust control electronics, containing the proven path measurement system of the T.VIS® A-15 as an on-board version. The cable connection to the central control level is implemented by the customer, either via externally accessible M12 plugs or via direct wiring to internal spring-loaded terminals, depending on the requirements. Parameters can be preset via DIP switches so that the actual commissioning no longer requires any further operation or configuration. Using an internal reset button, the electronics can be reset to delivery status after a valve service, so that a new self-learning process takes place automatically when the system is restarted. The supply air connection is equipped with a replaceable filter to protect the built-in solenoid valves.
