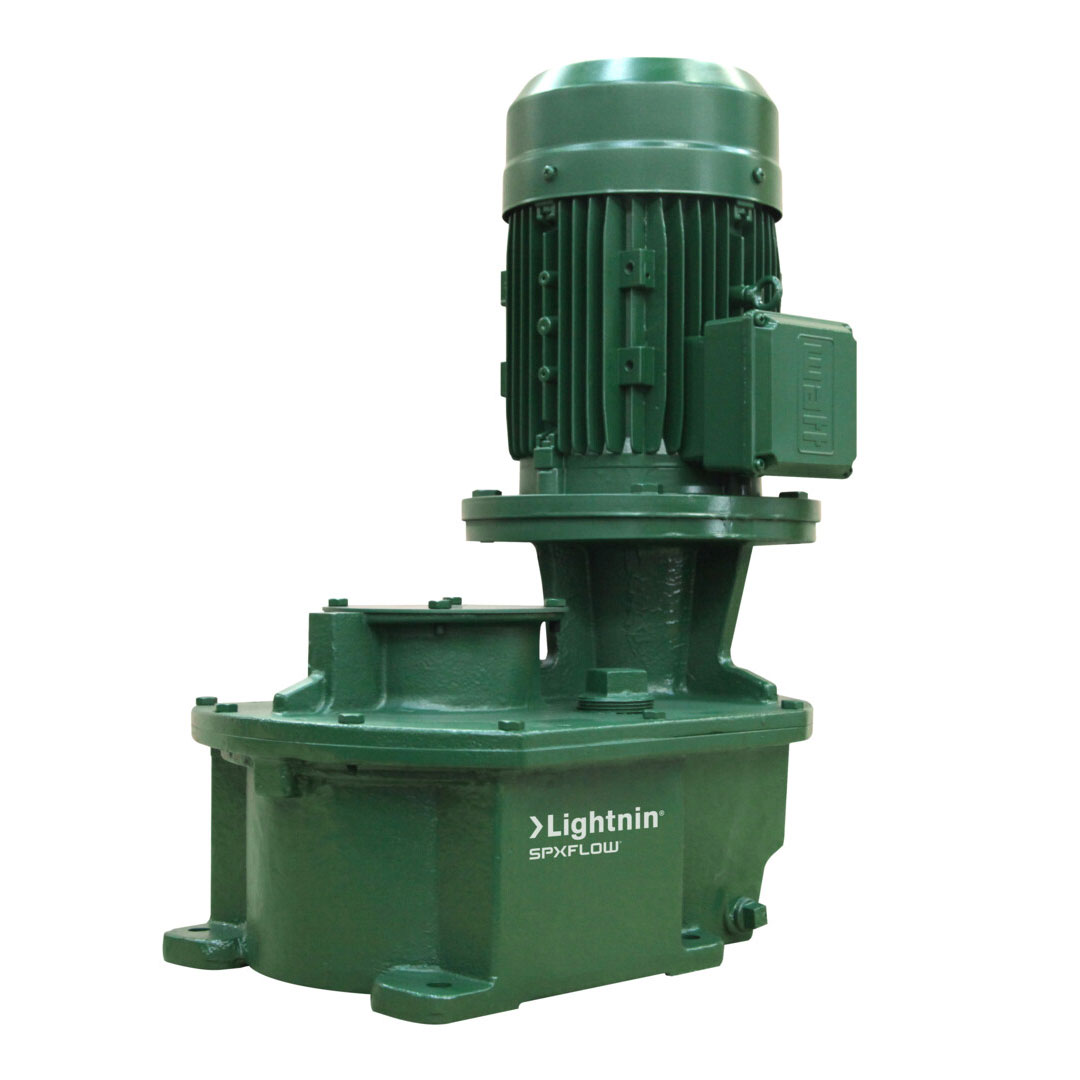

Compact Series – Medium Torque Top Entering Mixer
| Access-products | |
|---|---|
| Application | , |
| Industry | , |
Compact Series mixers offer great value and high performance for the Water, Mining and Chemical Industries.
Description
The Compact Series Mixers by Lightnin are purpose-built for North and South American markets, offering high-performance mixing at an affordable price. With the same reliability and mixing guarantees as other Lightnin models, this series delivers exceptional value in a simplified, space-saving design.
Design Advantages
- Reduced gearbox footprint for easier installation and lighter structural loads
- Supports double or triple reduction without changing casting size
- True dry well design prevents lubrication loss into mixed product
- Simplified construction minimizes gear deflection and bearing loads for quieter operation and longer life
- Direct-to-beam mounting with integrated bolting holes
- Oversized fill hole and direct oil fill marking for easy lubrication checks—no dipstick required
Performance & Specifications
- Power range: 0.75kW to 55kW (1HP to 75HP)
- Shaft speed range: 13 rpm to 155 rpm
- IEC or NEMA flanged motors available to meet regional and legislative standards (including ATEX and XP)
Impeller Compatibility
- Compatible with Lightnin impellers: A510, A200, A320, Clean Edge, and R100
