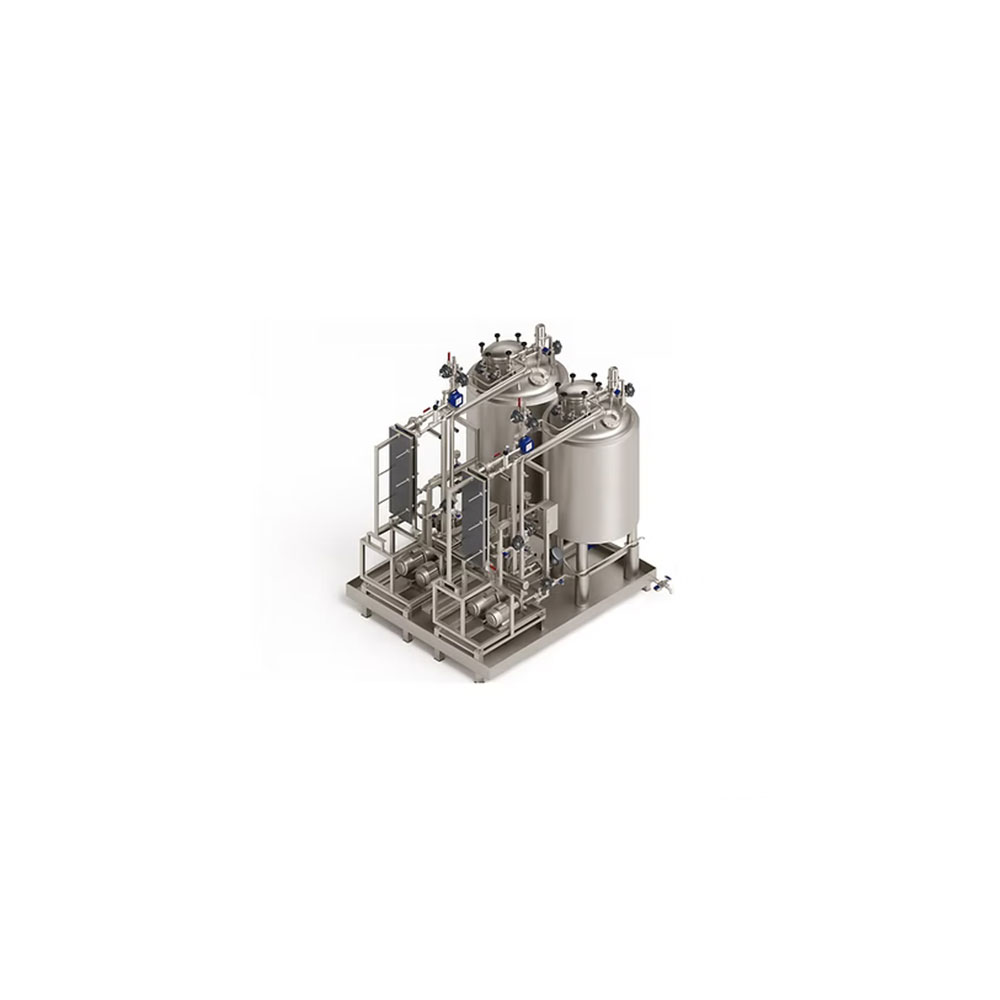

The CIP system is mounted on a fully welded safety tray. All process components – tanks, pumps, heat exchangers, valves, sensors, automation, and piping – are located above the tray, ensuring that any leaks or overflows are safely contained.
The tub has surrounding edges, drainage channels and optionally an integrated drain nozzle that allows for the collection and controlled removal of cleaning media.
The system operates fully automatically with defined cleaning cycles (pre-rinse, caustic, intermediate rinse, acid, final rinse, disinfection) and documents process data in accordance with GMP and FDA regulations. All media-carrying components are made of AISI 316L with dead-space-free piping and are fully CIP-compatible.
Special features / characteristics:
- Compact design, collection and safety function
- Safety tray made of AISI 304 or PP with drain for safe media return
- CIP system manufactured entirely in AISI 316L with optional electropolished surfaces
- Validatable cleaning according to GMP/FDA
- Automated control with CIP recipe management, data recording and remote access
- Dosing units for cleaning agents used via high-precision pumps
- Integrated sensors for conductivity, temperature, pressure, fill level, pH value and flow rate
- Modular skid design, easy installation and maintenance
- Splash guard made of transparent plastic strips optionally available
