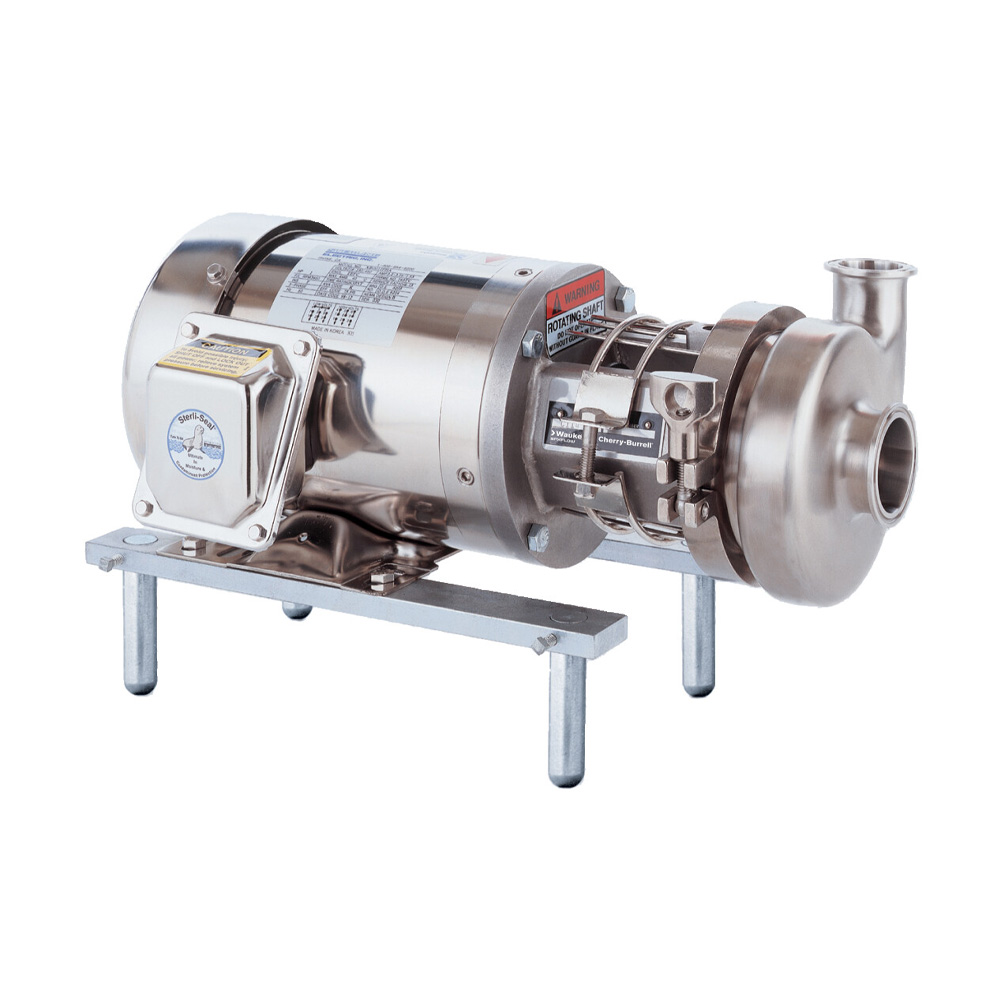

Versatile Waukesha C-Series Centrifugal Pumps from Waukesha Cherry-Burrell find broad application throughout sanitary and industrial processes. These rugged pumps accommodate a wide range of solids and liquids under a variety of flow conditions and deliver long service with minimum downtime.
Description
This pump delivers strong performance and competitive value within the lower spectrum of heavy-duty centrifugal applications. It can be installed in series without risk of seal failure—even under elevated inlet pressures and with viscous products.
Key Benefits
- Hydraulic balancing reduces pressure at sealing surface for less wear and greater efficiency
- Open-type impeller design ensures smooth, easy-cleaning performance
- Optional enlarged inlets accommodate larger suction lines
- Standard Clean-in-Place (CIP) capability
- Interchangeable with other C-Series pump brands
- Long-life backplate and adapters machined from solid bar stock stainless steel for optimal seal life and corrosion resistance
- All “wet end” components made from 316L stainless steel for durability
- Certified to 3-A and CE standards
Design Features
- 304 stainless steel adapters: Standard, eliminating rust, corrosion, and paint chipping common with carbon steel
- Extended seal life: Wave spring provides uniform seal face loading; hydraulic balancing reduces wear and downtime
- Tool-free disassembly: Quick-opening, heavy-duty cast clamp secures casing; impeller pin retained by centrifugal force
- Tested reliability: Each pump undergoes rigorous testing before shipment
- Customizable casing: Choose standard or enlarged inlet with port connection to match your piping system
- Enhanced CIP capability: Grooves in impeller/shaft route cleaning solutions to all critical areas
