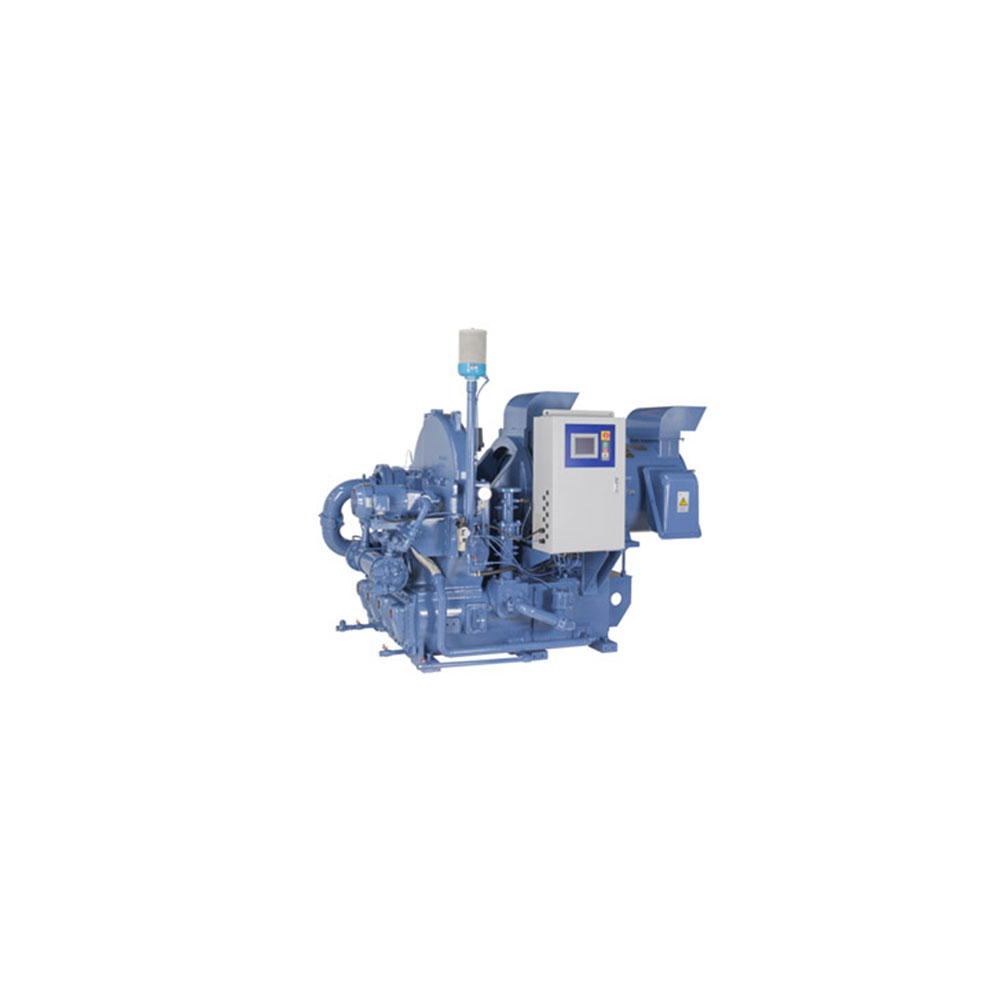

T2 series is the latest 2-stage compression model designed to be compact and robust with state of the art aerodynamic design and providing stable operation through Inlet guide vane. space-saving is also an advantage of this model as compared to rotary screw compressors.
Specification
| Motor | 125kW-230kW | 168-308hp | |
|---|---|---|---|
| Flow Rate | 1,394-2,648m3/h | 820-1,559cfm | |
| Discharge Pressure | 0.55-0.88MPaG | 80—128psig | |
| Dimensions | Length | 2,450mm | |
| Width | 1,640mm | ||
| Height | 1,900mm | ||
| Weight | 4,500kg | ||
IHI advantage
Simple and reliable design
T2 series consists of vital components, such as air cooler, main motor, control panel, gear box, suction filter and all these will be fitted into one compact package. This simple design allows for smaller installation space and shorter installation time. The structure of the robust gear box provides the customers with high reliability by utilizing tilting pad journal bearing, customized core parts(Impeller, diffuser). These parts are designed with anti-wearing technology, built for long life and stable operation.
Simple and reliable design
User friendly operation
Low maintenance
T2 series has been designed to be the more simple and robust option, therefore, minimizing maintenance cost and time as compared to rotary screw compressors which needs regular replacement for the capital parts.
What is Centrifugal compressor?
Higher efficiency
T2 series offers wide range of aero design compared to the previous models. In addition, inlet guide vane is installed as standard for higher efficiency and stable operation in order to meet customer needs.
Energy saving
IHI centrifugal compressors supply 100% oil free air to the customers. They are classified under the latest ISO8573-1 Class 0 oil free, which is the highest grade for the purity of compressed air, by an independent third-party test house TÜV in Germany, minimizing the risk of oil contamination.
