CCTT Tumbling Tester for Crown Closure
| Application | |
|---|---|
| Brand | |
| Industry | |
| Machinery Type |
Lab industrial solution |
| Access-products |
For assessing the durability of metal and coatings on crown caps by measuring wear through controlled tumbling tests.

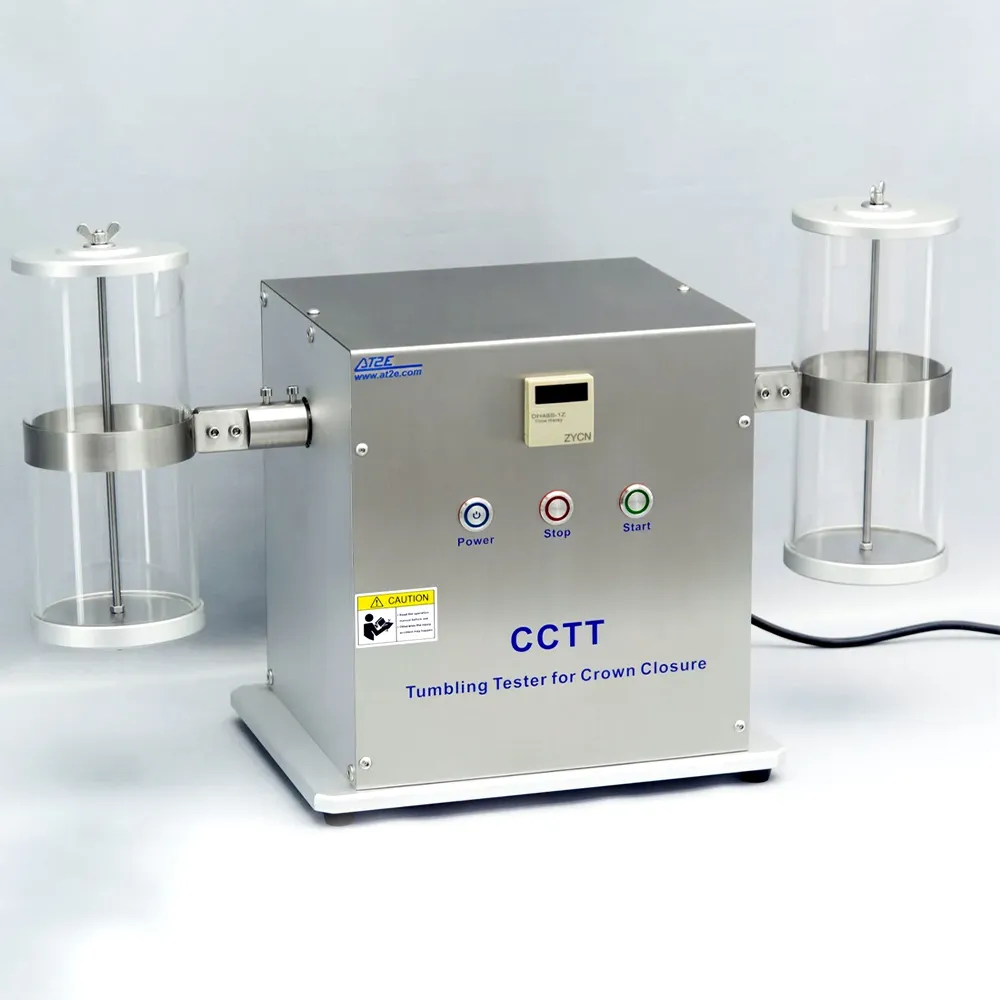

The AT2E CCTT Tumbling Tester is designed to evaluate the shedding of metal and coating from crown closures. This tool is essential for cap manufacturers, breweries, and quality inspection agencies.
Features:
- Dual sample chambers for increased efficiency

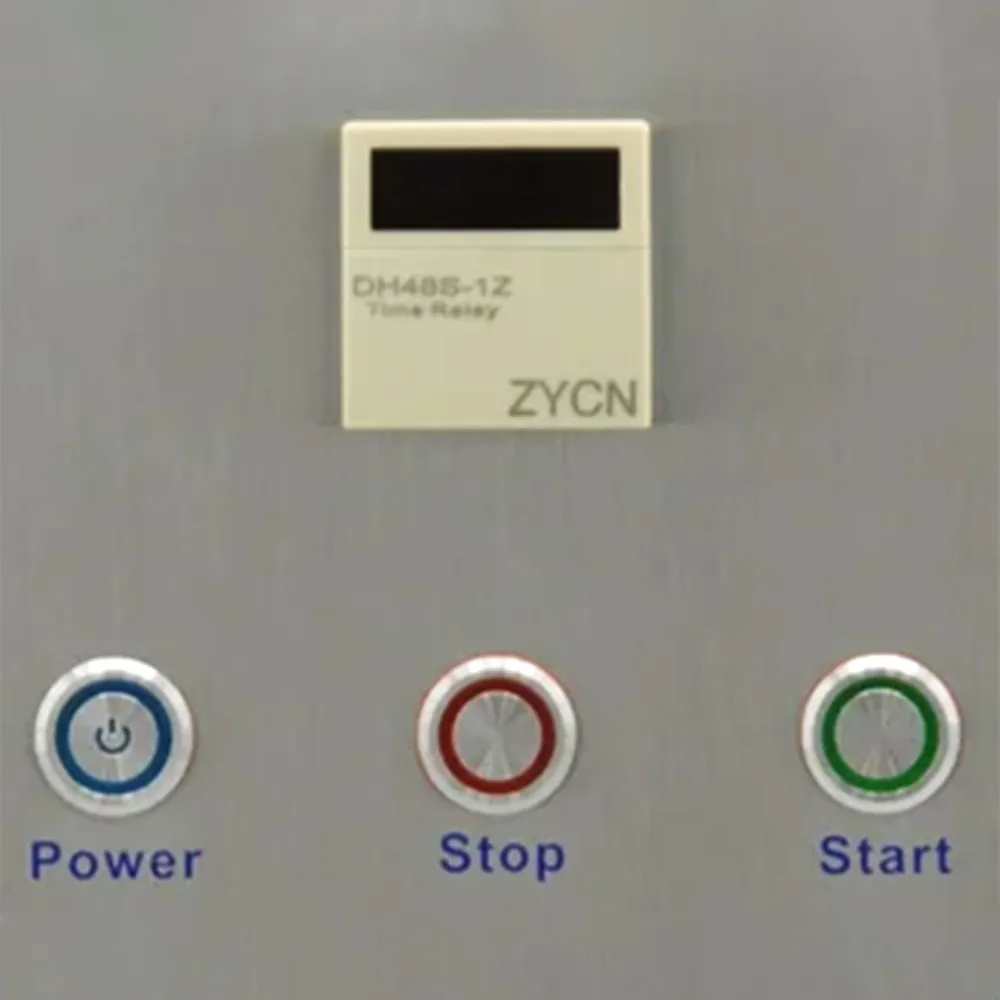

- Adjustable timer, up to 99 minutes
Testing Procedure:
- Divide 50 cleaned caps into two groups of 25 each. Weigh each group with an accuracy of 0.1 mg.
- Place the caps into the sample chambers and run the test for 50 minutes (adjustable), at a speed of 20 RPM.
- Remove the caps, clean off any wear film, and reweigh each group with the same accuracy.
- Calculate the weight loss for each group, then average the results to determine the cap’s abrasive wear value.
- Compare this value to the standard range to determine if the caps meet the required specifications.
Technical Specifications:
- Tumbling Speed: 20 RPM
- Time Setting: 1-99 minutes
- Rolling Grooves: 2
- Dimensions: 28.75” x 11” x 17” (730 x 280 x 430 mm)
- Weight: 55 lbs (25 kg)
FAQ for CCTT Tumbling Tester for Crown Closure
What is the purpose of the CCTT Tumbling Tester?
The CCTT Tumbling Tester is designed to assess the durability of metal and coatings on crown caps by measuring wear through controlled tumbling tests. It is essential for cap manufacturers, breweries, and quality inspection agencies to ensure product quality and compliance with industry standards.
How does the testing procedure work for the CCTT Tumbling Tester?
The testing procedure involves dividing 50 cleaned crown caps into two groups of 25, weighing each group, placing them in the dual sample chambers, and running the test for a set time (up to 99 minutes) at a speed of 20 RPM. After the test, the caps are cleaned, reweighed, and the weight loss is calculated to determine the cap’s abrasive wear value.
What are the key features of the CCTT Tumbling Tester?
The CCTT Tumbling Tester features dual sample chambers for increased efficiency, an adjustable timer that can be set for up to 99 minutes, and operates at a tumbling speed of 20 RPM. These features enhance the testing process and provide accurate results.
What are the technical specifications of the CCTT Tumbling Tester?
The technical specifications include a tumbling speed of 20 RPM, time setting from 1 to 99 minutes, two rolling grooves, dimensions of 28.75” x 11” x 17” (730 x 280 x 430 mm), and a weight of 55 lbs (25 kg), making it a robust and efficient testing tool.
Who can benefit from using the CCTT Tumbling Tester?
Cap manufacturers, breweries, and quality inspection agencies can greatly benefit from using the CCTT Tumbling Tester as it helps ensure the durability and quality of crown closures, ultimately leading to better product performance and customer satisfaction.
