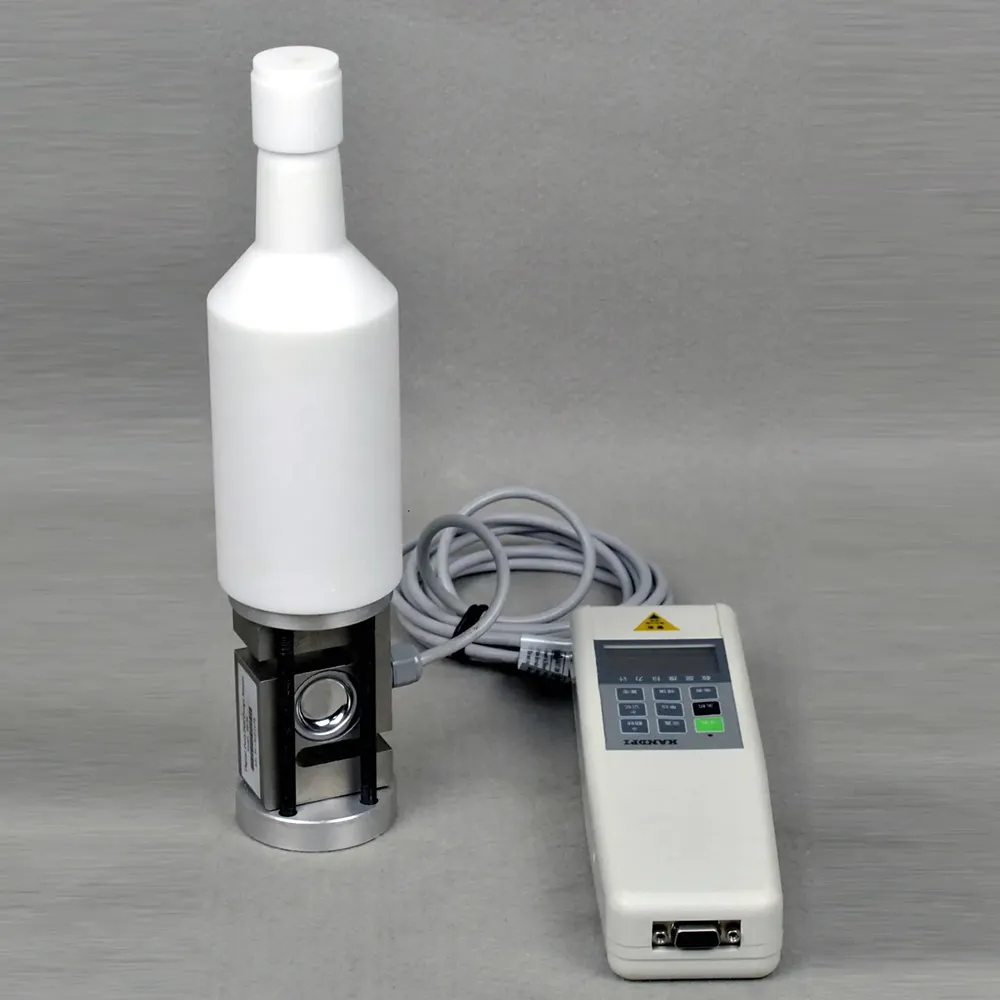

BT ETA FORCE SHF Dynamometric Force Bottle

The BT ETA FORCE SHF Dynamometric Force Bottle is designed for integration under a capping head to accurately measure compression forces (top load) during the capping process. This device is crucial for ensuring consistent capping quality by providing precise force measurements in real-time, without requiring the dismantling of equipment.

Key Features:

• Specialized Mechanical Design: Minimizes the influence of non-coaxial efforts, ensuring accurate measurements.
• High-Speed Electronic Measurement: Built-in system for rapid and precise data collection.
• Separate Digital Display: For easy reading of measurements.
• Measurement Capabilities:
  • Compression (Top Load) Measurement
  • Measuring Range: 0 to 500.0 Kgf (0 to 1102.3 lbf / 0 to 4903.3 N)
  • Measurement Modes: Continuous and Peak
  • Units Supported: Kgf, lbf, N
  • Accuracy: ±5% of full scale
• Power Supply: USB charging (PC) with reversible display.
• Certification: Delivered with COFRAC certificate.
• Transport: Includes a durable transport case.
• Power Requirements: 110 / 230 V, 50/60 Hz.

Mechanical Specifications:

• Customization: Designed according to customer specifications and drawings.
• Battery: Built-in battery with 20-hour life.
• Dimensions:
  • Minimum Diameter: 2″ (50 mm)
  • Minimum Height: 4.1″ (104 mm)
• Weight: 6.5 lbs (3 kg)

Usage:

• Integration: Ready for installation on the production line immediately after the filling machine.
• Functionality: Allows for control of capping heads under real operating conditions, considering both speed and top load.
• Convenience: Eliminates the need for dismantling equipment.
• Flexibility: Supports interchangeable formats for various bottle types.

FAQ for BT ETA FORCE SHF Dynamometric Force Bottle

What is the purpose of the BT ETA FORCE SHF Dynamometric Force Bottle?

The BT ETA FORCE SHF Dynamometric Force Bottle is designed to measure compression forces during the capping process. It ensures accurate control of capping heads by providing real-time data without the need for dismantling equipment.

What are the measurement capabilities of the BT ETA FORCE SHF?

This device measures compression (top load) forces with a range of 0 to 500.0 Kgf (0 to 1102.3 lbf / 0 to 4903.3 N). It supports continuous and peak measurement modes and can display results in Kgf, lbf, or N.

How accurate is the BT ETA FORCE SHF Dynamometric Force Bottle?

The device offers an accuracy of ±5% of full scale, ensuring reliable and precise measurements during the capping process.

What are the power requirements for the BT ETA FORCE SHF?

The BT ETA FORCE SHF operates on a power supply of 110 / 230 V, 50/60 Hz, and features USB charging for convenience. It also includes a built-in battery with a 20-hour life for added flexibility.

Is the BT ETA FORCE SHF easy to install on a production line?

Yes, the BT ETA FORCE SHF is designed for immediate installation on the production line, positioned right after the filling machine, allowing for seamless integration into existing processes.

Does the BT ETA FORCE SHF come with any certifications?

Yes, the BT ETA FORCE SHF is delivered with a COFRAC certificate, ensuring its compliance with industry standards for quality and accuracy.
