For efficiently and accurately collecting samples from bottles and cans in the beer and soft drink industries, ensuring consistent quality control. It automates the sampling process, making it safer and faster compared to manual methods.
Description

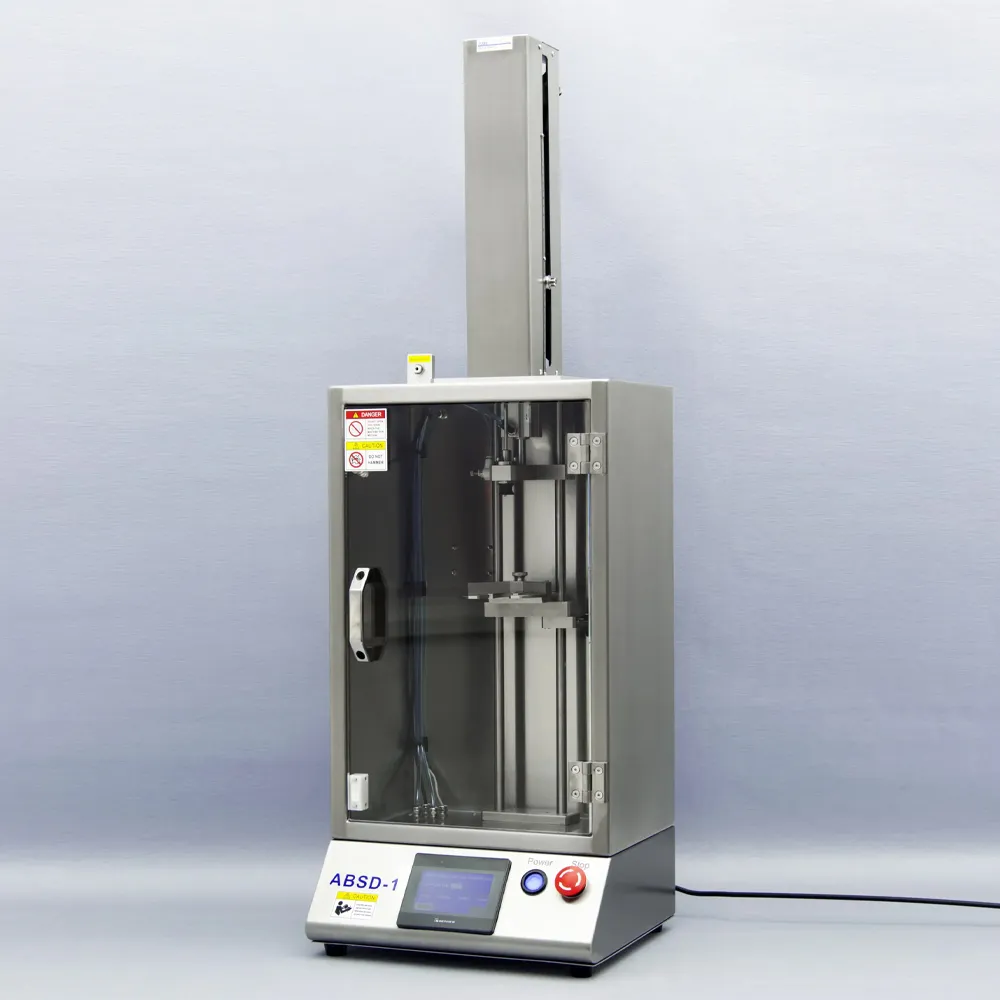

The ABSD-1 Automated Beverage Sampling Device is designed to streamline the process of obtaining reproducible and accurate samples from bottles and cans in the beer and soft drink industries. This device is essential for various quality control processes, allowing for efficient and consistent sampling with minimal operator intervention.
The ABSD-1 enables automated sampling by allowing operators to set the sampling pipe’s insertion depth, install the sample, close the door, and initiate the process with a touch screen interface. The device automatically pierces the container, extracts the sample, and directs it into the sample line, ready for CO2, O2, and other analyses.
Key Attributes & Benefits:
- Safe and Efficient: Provides a safe, easy, and rapid sampling process compared to manual methods.
- Versatile Compatibility: Compatible with various packaging types, including glass bottles, plastic bottles, and cans.
- User-Friendly Interface: Features an intuitive touch screen for easy adjustments to accommodate different package sizes and types.
- Interoperability: Can be used with instruments from other brands.
Technical Specifications:
- Overall Size: 14.5″ x 16.9″ x 46″ (368 x 428 x 1168 mm)
- Sample Range:
- Height: 3.15″ to 15.75″ (80 to 400 mm)
- Diameter: 1.75″ to 5″ (45 to 125 mm)
- Connection:
- Pressure Pipe: ø 8 mm
- Sampling Pipe: ø 4 mm
- Pressure Requirement: 70 to 115 psi (5 to 8 bar)
- Weight: 55 lbs (25 kg)
FAQ for ABSD-1 Automated Beverage Sampling Device
What is the ABSD-1 Automated Beverage Sampling Device used for?
The ABSD-1 Automated Beverage Sampling Device is designed to efficiently and accurately collect samples from bottles and cans in the beer and soft drink industries, ensuring consistent quality control during the sampling process.
How does the ABSD-1 automate the sampling process?
The device automates sampling by allowing operators to set the insertion depth of the sampling pipe, close the door, and initiate the process via a user-friendly touch screen interface. It automatically pierces the container, extracts the sample, and directs it into the sample line for analysis.
What types of containers is the ABSD-1 compatible with?
The ABSD-1 is compatible with various packaging types, including glass bottles, plastic bottles, and cans, making it a versatile solution for different beverage sampling needs.
What are the technical specifications of the ABSD-1?
The overall size of the ABSD-1 is 14.5″ x 16.9″ x 46″ (368 x 428 x 1168 mm). It can handle sample heights from 3.15″ to 15.75″ (80 to 400 mm) and diameters from 1.75″ to 5″ (45 to 125 mm). The device requires a pressure connection of 70 to 115 psi (5 to 8 bar) and weighs 55 lbs (25 kg).
Is the ABSD-1 easy to operate?
Yes, the ABSD-1 features an intuitive touch screen interface that makes it easy for operators to adjust settings for different package sizes and types, ensuring a user-friendly experience.
Can the ABSD-1 be integrated with other instruments?
Yes, the ABSD-1 is designed for interoperability and can be used with instruments from other brands, enhancing its functionality in various quality control processes.
