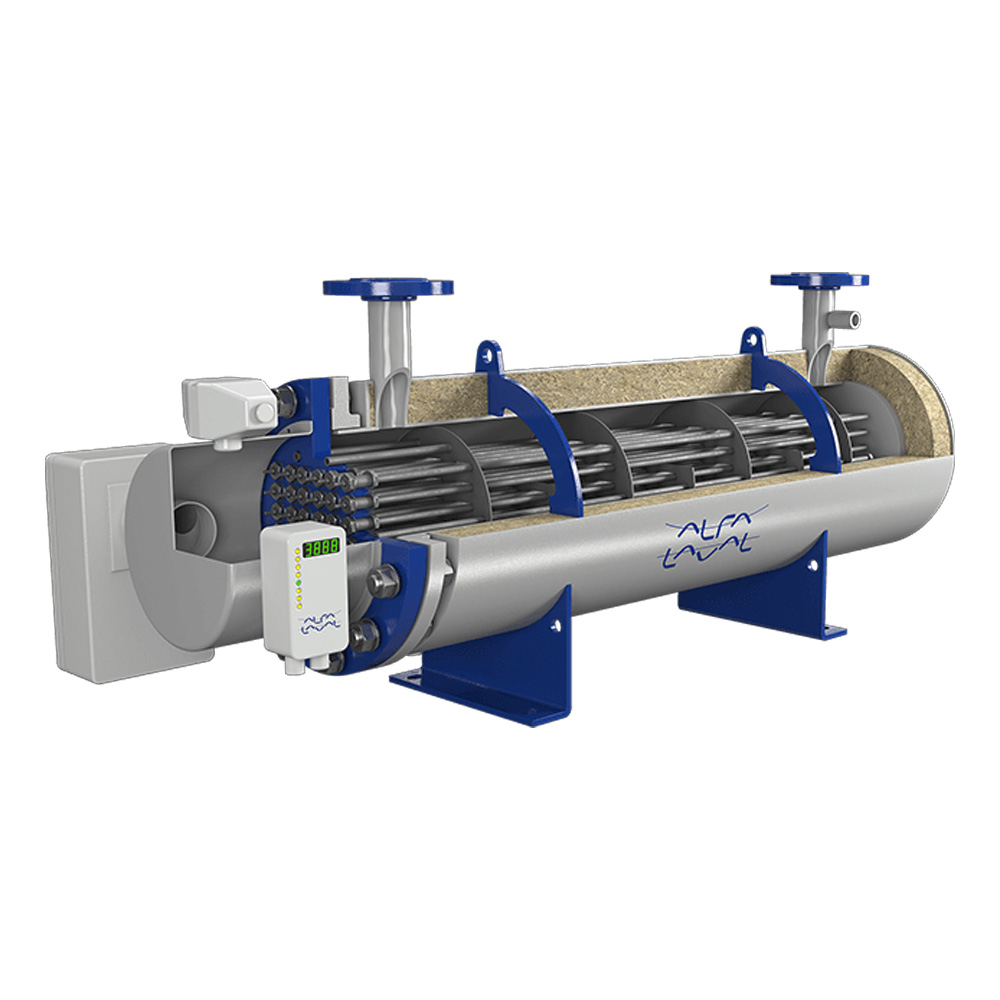

Aalborg EH-W - Image 1
Click to enlarge
Alfa Laval

Aalborg EH-W

Application

Brand

Industry

,

Access-products

The Alfa Laval Aalborg EH-W is a flow-through electric heater, ideal for heating technical treated water. It is also available in a design applicable for bilge water, or as an outflow suction heater or tank-mounted immersion heater. Its heat load capacities range from 15 to 486 kW, with design conditions up to 10 bar(g) and 95°C. The standard Aalborg EH-W heater design is approved by all major marine classification societies and is CE/PED approved.

Description

Versatile electric water heater

  • Efficiently heat water or other non-viscous fluids in marine and industrial applications
  • Adapt the heater design to your application using the wide range of customization options
  • Install horizontally or vertically to fit the available space

The Aalborg EH is primarily used as a water heater on marine vessels. It has a flexible shell-and-tube design and is well suited for applications where electric power is the cheapest or only available power source.

Technical specifications

Type

  • Electric flow-through, outflow or immersion heater with stainless steel elements

Application

  • Heating of water and non-viscous fluids

Capacity

  • Heat load: 15–486 kW
  • Surface load (nominal): 10 W/cm2
  • Input power: 380–690 V AC/DC
  • Heating elements manufactured to suit customer-specific power source

Materials

  • Carbon steel with stainless steel elements (other materials on request)

Design conditions

  • Pressure: 10 bar(g)
  • Temperature: 95°C

Installation

  • Horizontal or vertical

Size

  • Shell: Ø150–400 mm
  • Heating element length: 1000–1200 mm (other lengths on request)
  • Overall length: 1300–2000 mm
  • Flanges: JIS 16K or EN1092-1
 Equipment

  • Two half-inch sockets on shell for mounting of safety valve and drain valve
  • Safety thermostat
  • Working thermostat with step or PLC control
  • Sensor pocket at the outlet for the working thermostat
  • Accessories (optional):
  • Safety valve
  • Drain valve
  • Pressure gauge
  • Thermometer
  • Pt100 sensor
  • Electronic or mechanical thermostat

Approvals

  • ABS
  • BV
  • CCS
  • DNV
  • KR
  • LRS
  • NKK
  • RINA
  • PED

Delivery

  • Within 7 weeks from receipt of order for all types
  • Emergency deliveries within a few days for standard types

Warranty

  • Operating warranty: 12 months
  • Maximum warranty: 18 months from time of delivery
