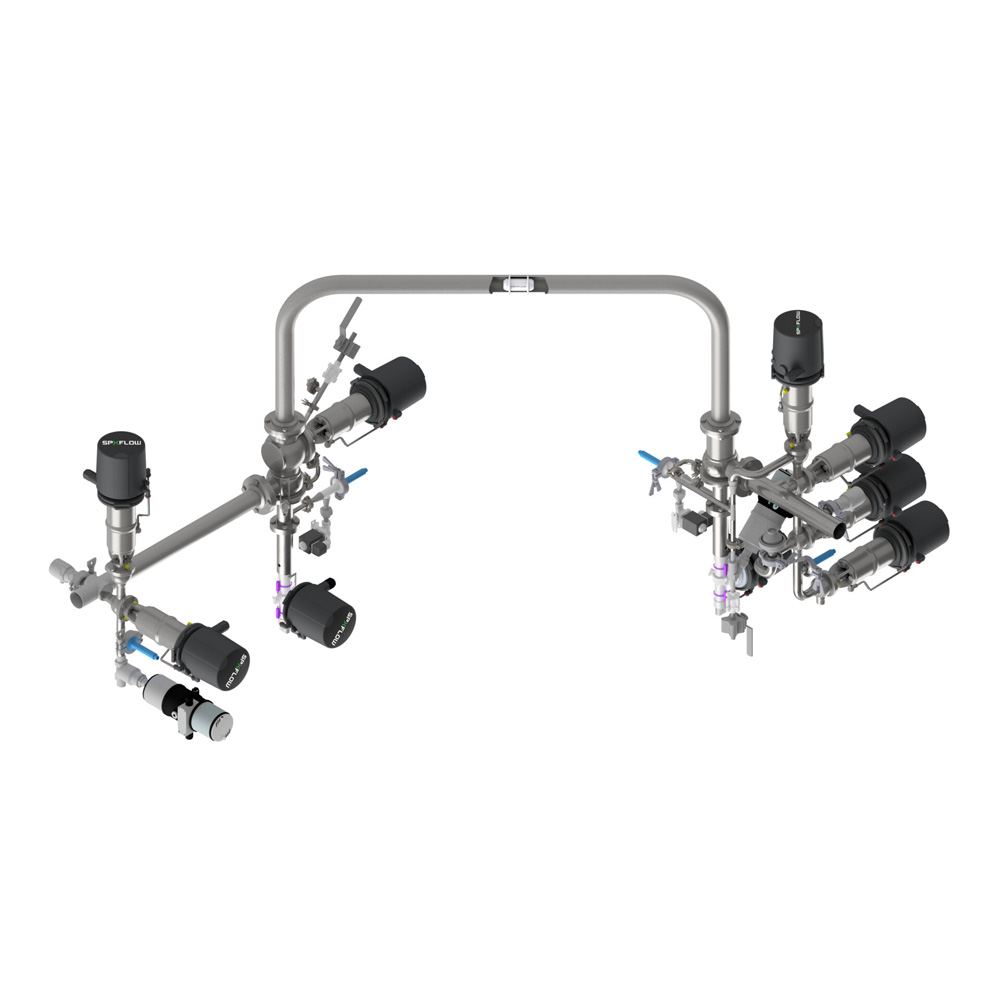

Pigging Systems

Pigging systems are industrial machines designed to clean, maintain, and optimize pipelines by using mechanical devices called “pigs” that are pushed through the pipe by pressure from liquids or gas. These systems are widely used in food & beverage, dairy, pharmaceutical, chemical, and oil & gas industries to improve product recovery, reduce waste, and maintain hygiene without dismantling the pipelines.

What Is a Pigging System?

A pigging system uses specially designed pipeline devices (pigs) that travel through pipelines to remove residual fluids, clean deposits, or separate different products. The process can be fully automated and is ideal for maintaining cleanliness, safety, and efficiency in continuous production lines.

Types of Pigging Machines

  1. Foam Pig Systems
  • Uses a foam pig to push remaining product through pipelines
  • Gentle on pipelines and sensitive products
  • Common in food, beverage, and dairy industries
  1. Hard Pig Systems
  • Rigid pigs made of metal or polyurethane
  • Effective for heavy cleaning, removing residues and buildup
  • Used in chemical and oil & gas pipelines
  1. Smart/Automated Pigging Systems
  • Equipped with sensors to monitor position and performance
  • Fully automated and integrated with PLC control
  • Improves efficiency and reduces labor
  1. Multi-Purpose Pigging Systems
  • Combine cleaning, product recovery, and inspection
  • Reduce downtime and maintenance costs
  • Used in high-value production lines like juices, dairy, and pharmaceuticals

Applications of Pigging Systems

Pigging machines are used in various industries for multiple purposes:

  • Food & Beverage: Product recovery in syrup, juice, and beverage pipelines
  • Dairy Industry: Reducing milk and cream wastage in processing lines
  • Pharmaceuticals: Ensuring hygienic cleaning of sterile pipelines
  • Chemical Industry: Removing residual chemicals and preventing contamination
  • Oil & Gas: Pipeline cleaning and inspection

Key Components of a Pigging System

  • Pigs (Foam, Hard, or Smart) – Primary cleaning or product pushing device
  • Pig Launchers and Receivers – Entry and exit points for pigs
  • Pumps or Gas Pressure Units – Propel pigs through pipelines
  • Sensors & Tracking Devices – Monitor pig position and pipeline status
  • Control Panel (PLC-Based) – Automates pigging cycles

Benefits of Pigging Machines

  • Maximizes product recovery and reduces waste
  • Minimizes downtime for cleaning and maintenance
  • Ensures hygienic, contamination-free pipelines
  • Reduces water and chemical usage
  • Increases operational efficiency and process reliability

Maintenance & Operational Considerations

  • Regular inspection of pigs and pipelines
  • Cleaning and sanitization after each cycle (especially in food/pharma)
  • Monitoring of pressure and flow during pigging
  • Calibration of sensors and automation systems

Conclusion

Pigging systems are essential machines for industries that require clean, efficient, and hygienic pipeline operations. By recovering product, preventing contamination, and maintaining optimal flow, pigging systems save time, reduce costs, and improve overall production efficiency. Selecting the right pigging system based on product type, pipeline material, and operational requirements ensures maximum performance and reliability.
